Rear Side Door Window Weatherstrip Replacement

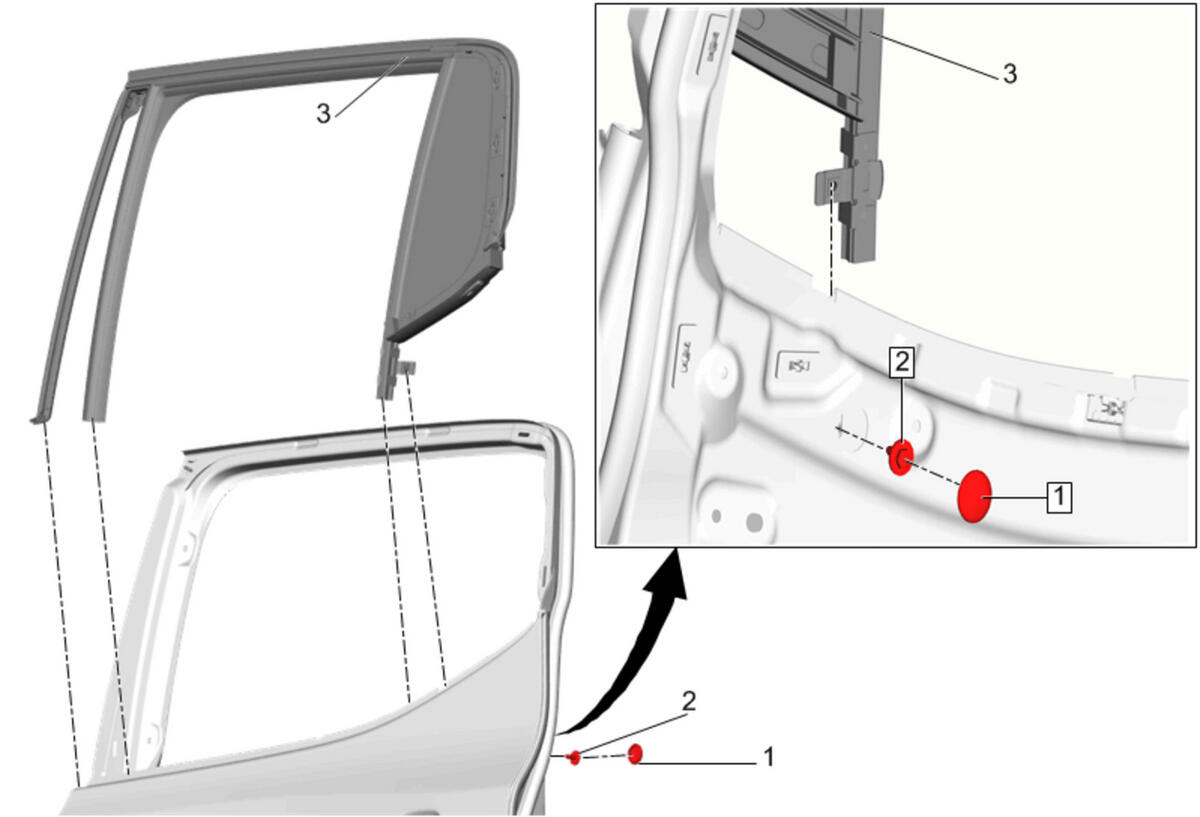

GM4405770Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Rear Side Door Window Replacement
  2. Rear Side Door Window Frame Front Applique Replacement
  3. Rear Side Door Window Upper Reveal Molding Replacement
1 Door Plug
2 Rear Side Door Window Weatherstrip Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
11 N.m (97 lb in)
3 Rear Side Door Window Weatherstrip
