Radio Bracket Replacement

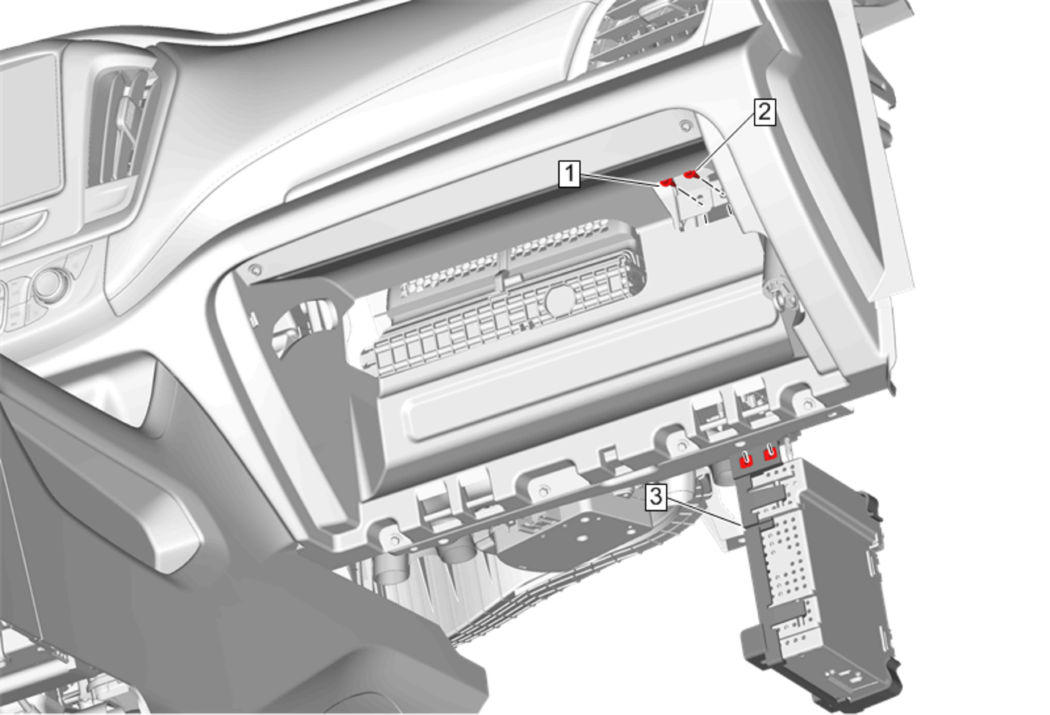

Callout	Component Name
Preliminary Procedures Instrument Panel Compartment Door Replacement Human Machine Interface Control Module Bypass Module Bracket Replacement
1	Radio Bracket Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Human Machine Interface Control Module Bracket Bolt Tighten 2.5 N.m (22 lb in)
3	Radio Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.
