Liftgate Latch Cover Replacement

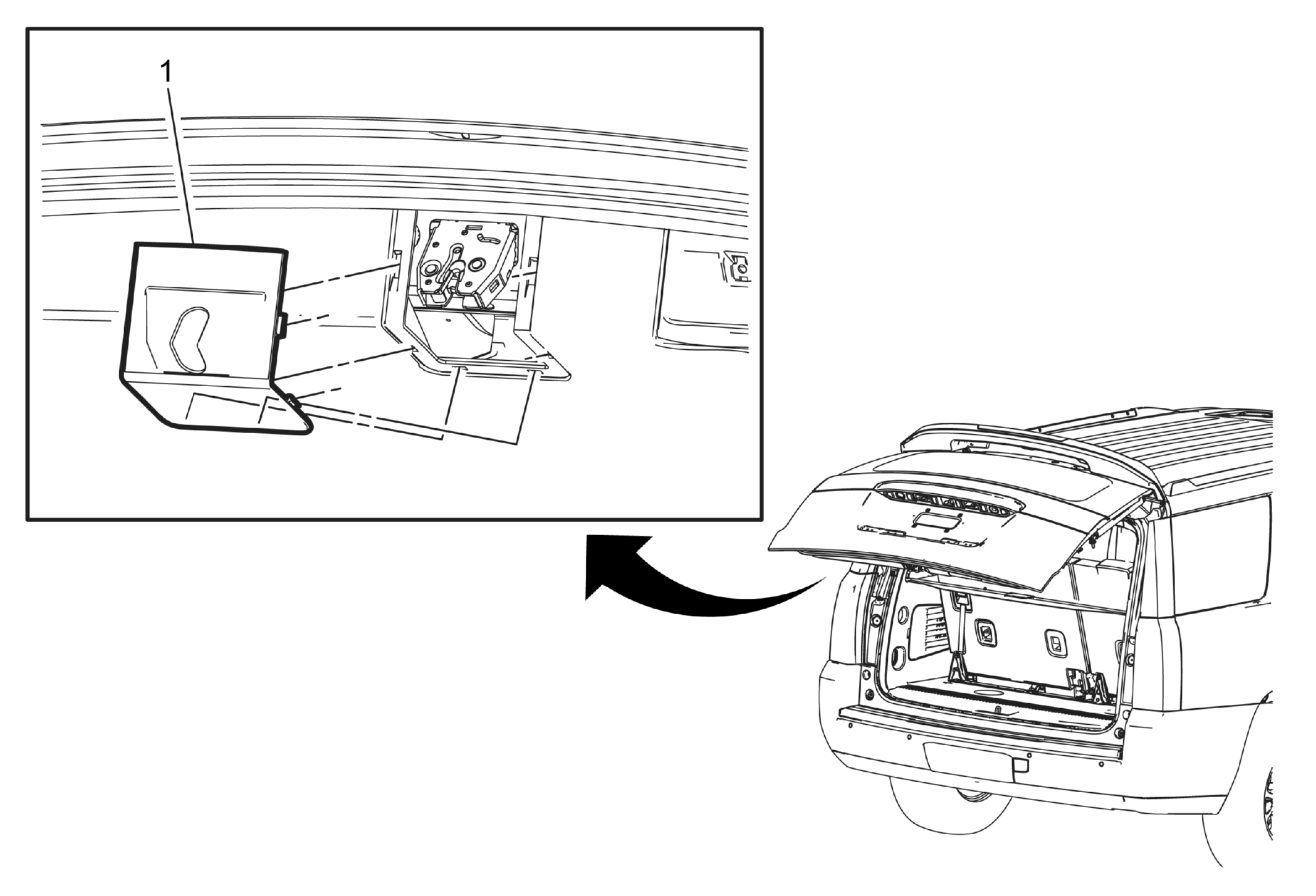

Fig 1: Liftgate Latch Cover
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Liftgate Latch Cover
Procedure
Use a small flat-bladed tool to pull and release the liftgate latch cover from the liftgate latch assembly.
