Removal Procedure

  1. Remove the transmission. Refer to Transmission Replacement .

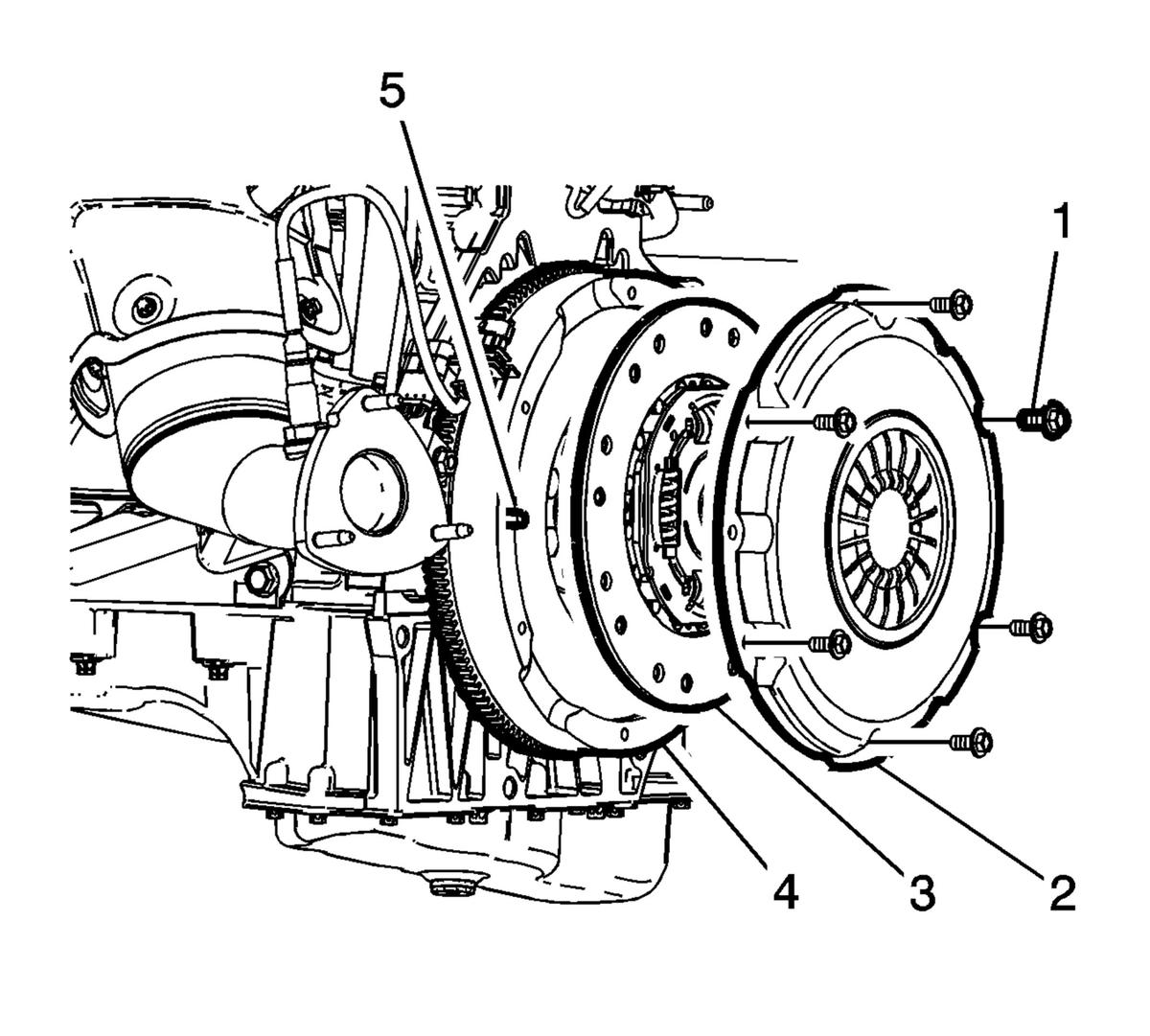

  2. GM2615168Courtesy of GENERAL MOTORS COMPANY

    Remove the clutch pressure plate bolts (1).

    Discard the bolts.

  3. Remove the clutch pressure plate (2) and driven disc (3) from the dowel pins (4) on the flywheel (5).
