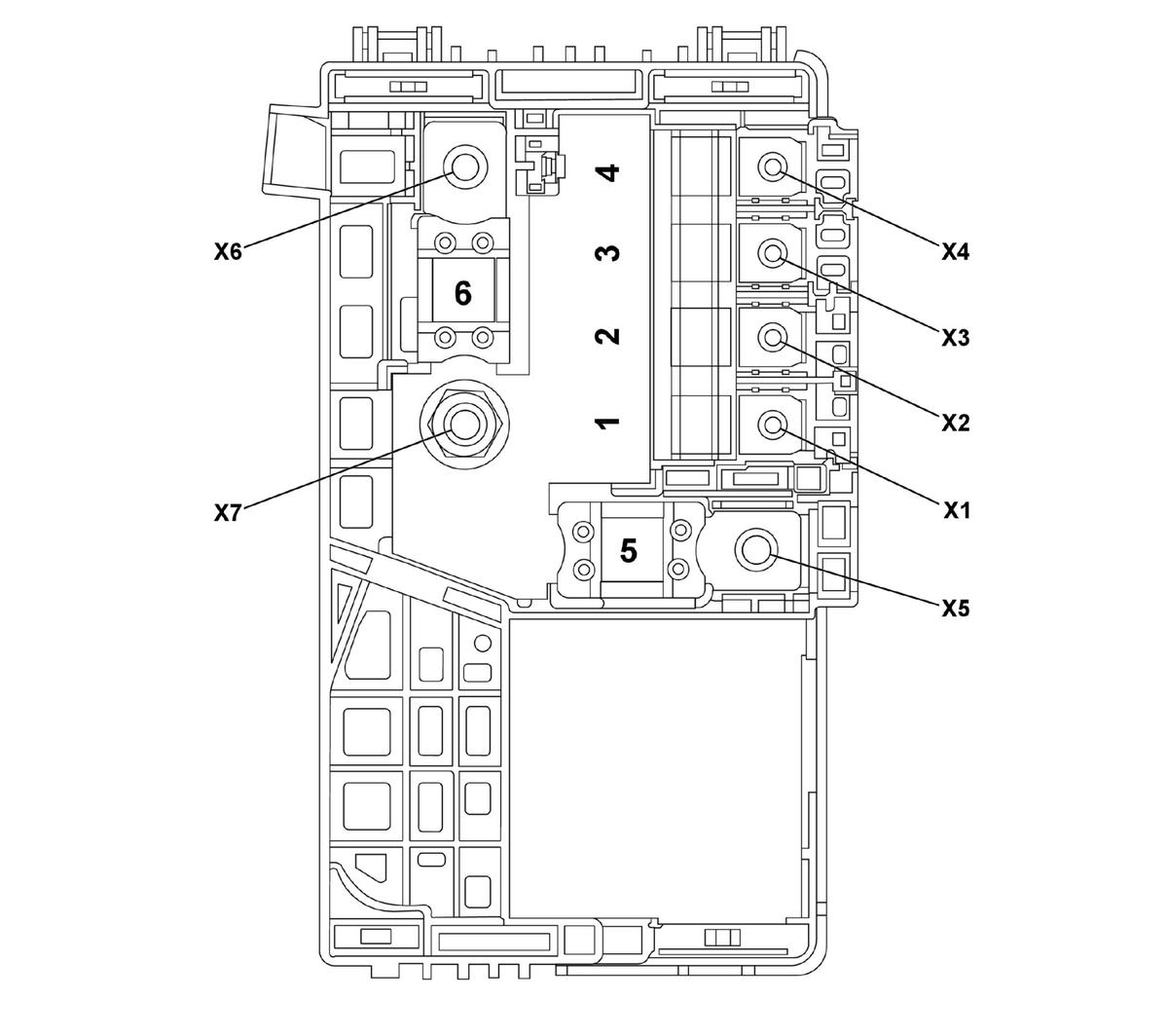

X50D Fuse Block - Battery Top View

GM4790898Courtesy of GENERAL MOTORS COMPANY
Usage Table

No. Device Label Name Device Assigned Name Rating Description
Fuses
1 - F1UB 100A
  • K43 Power Steering Control Module
2 - F2UB 100A
  • X51A Fuse Block - Instrument Panel
3 - F3UB 100A
  • X51A Fuse Block - Instrument Panel
4 - F4UB 100A
  • K22 Cooling Fan Control Module
5 - F5UB 250A
  • X50A Fuse Block - Underhood
6 - F6UB 300A
  • M64 Starter Motor
