Installation Procedure

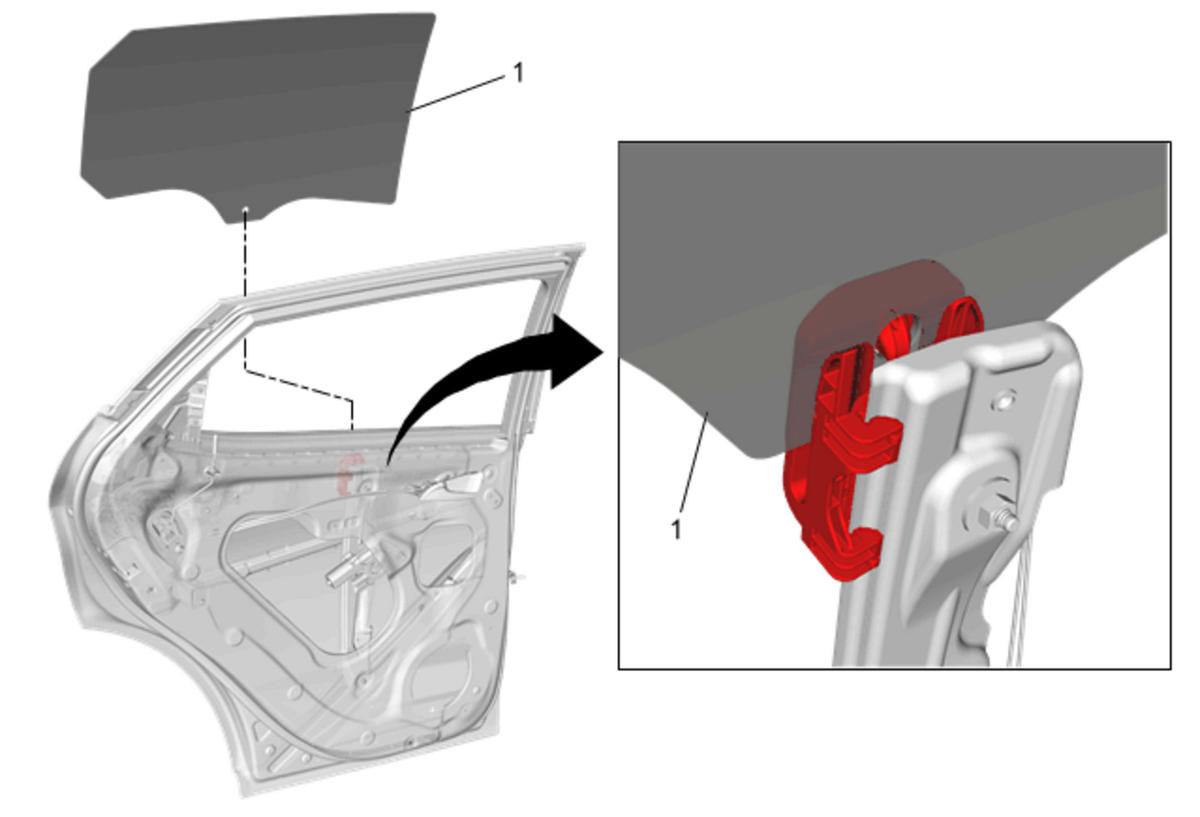

  1. GM4533755

    Insert the rear side door window (1) to the rear side door.

  2. GM4533766

    Position the channel (2) and Install the rear side door window channel rear retainer bolts (1). Rear Side Door Window Weatherstrip Replacement

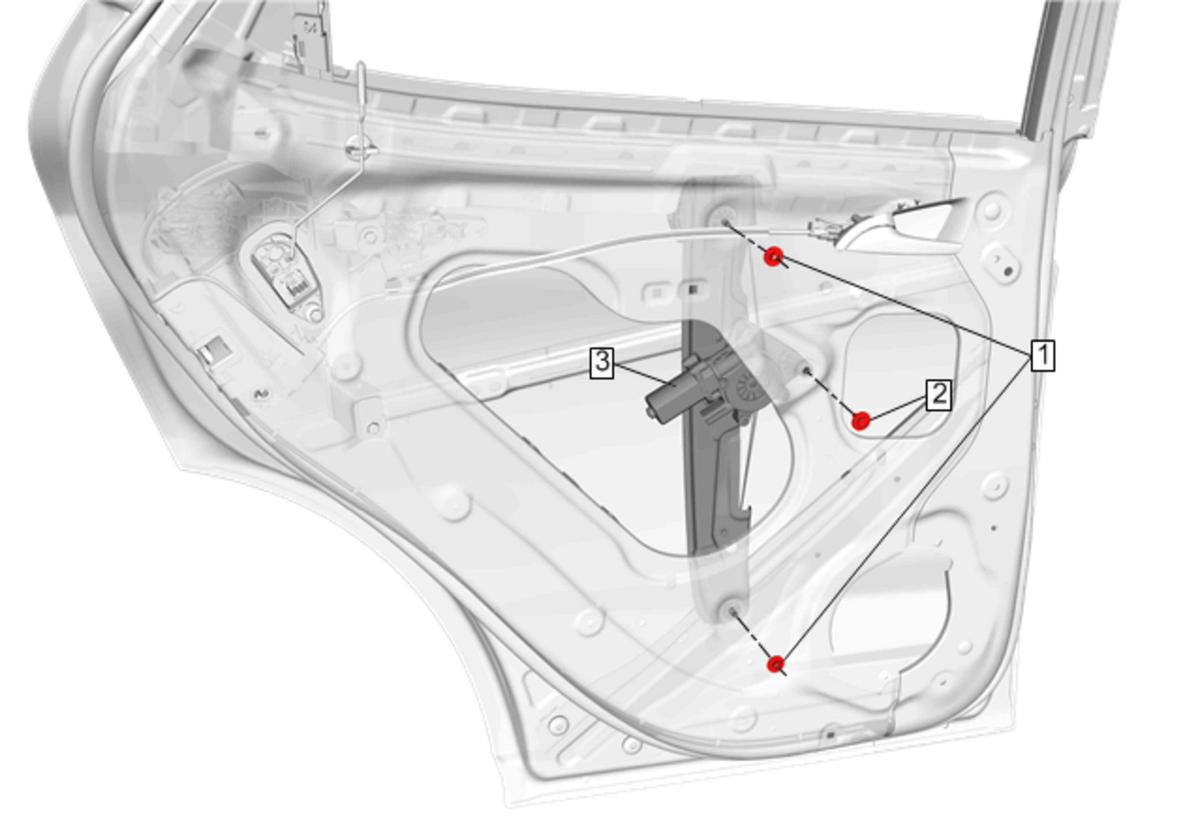

  3. GM4533775

    Rear Side Door Window Regulator (3) - Install - Rear Side Door Window Regulator Replacement

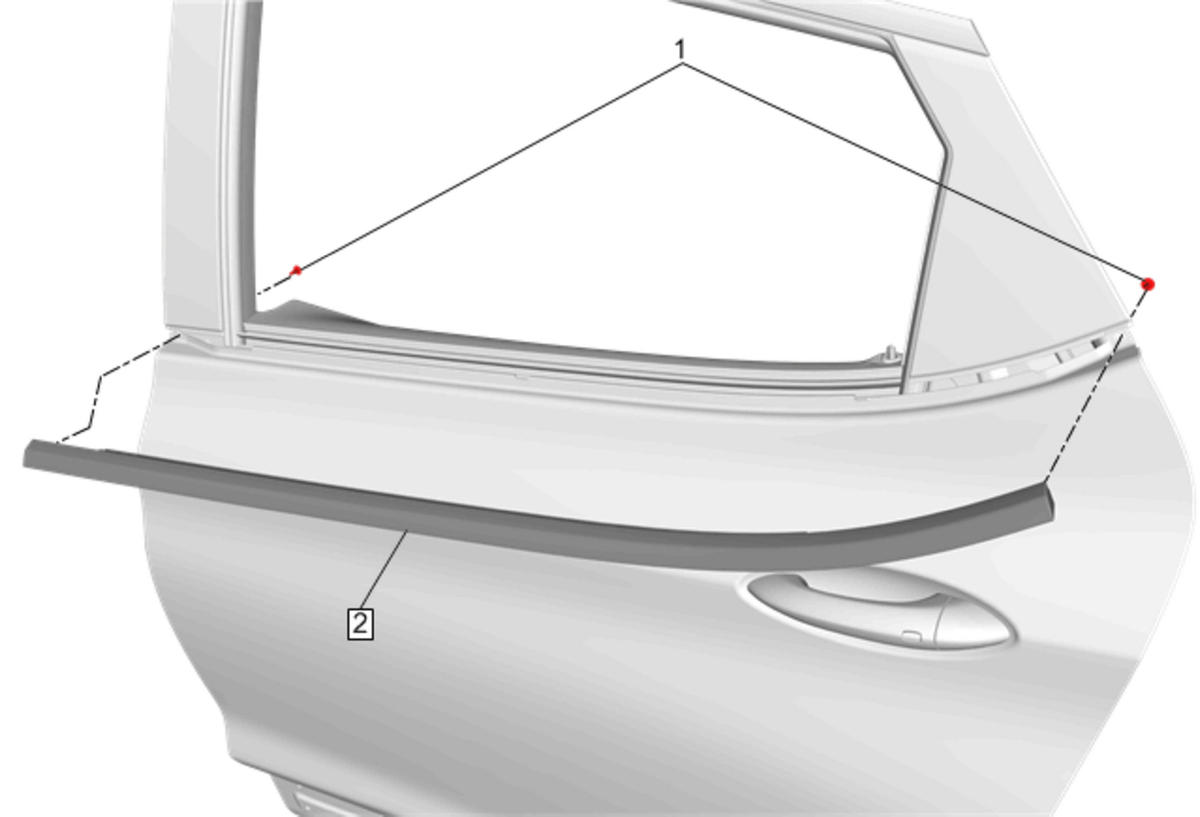

  4. GM4533783

    Rear Side Door Window Belt Reveal Molding (2) - Install - Rear Side Door Window Belt Reveal Molding Replacement

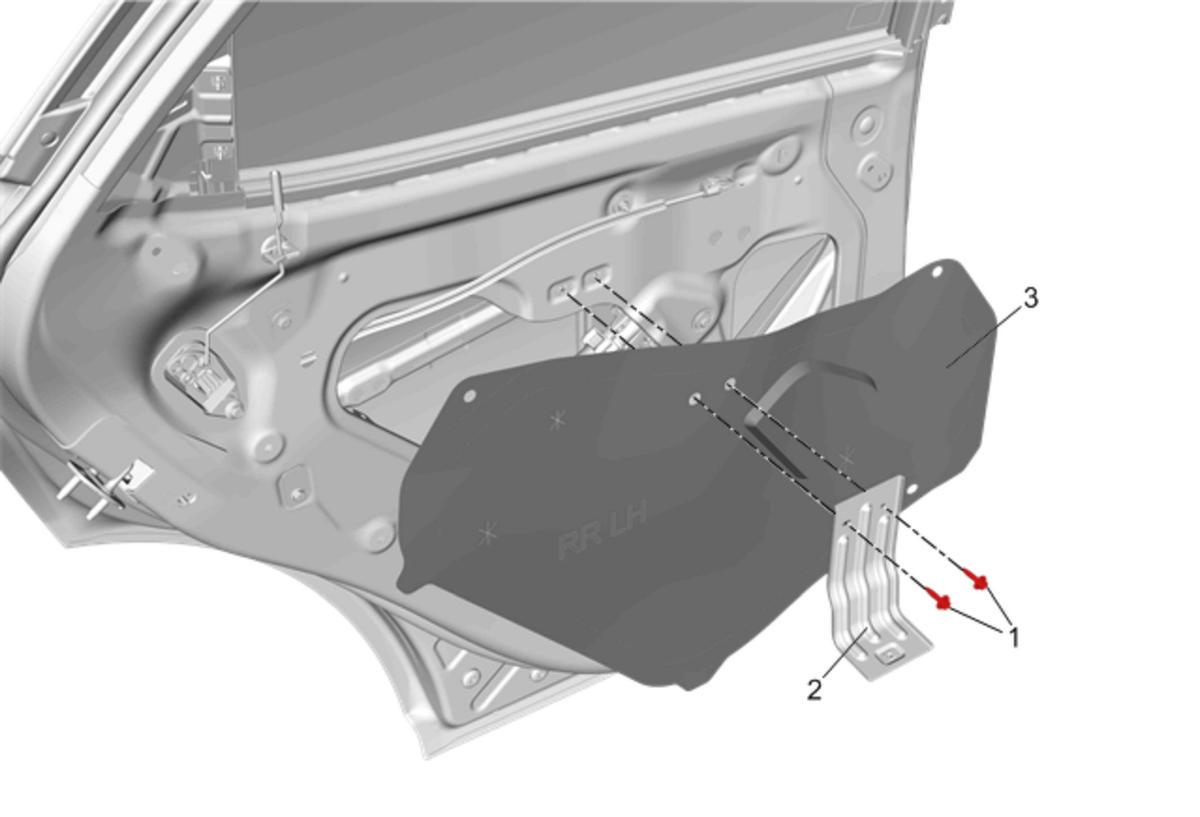

  5. GM4552164

    Rear Side Door Water Deflector (3) - Install - Rear Side Door Water Deflector Replacement

  6. Inspect the door window for proper operation before installing the door trim.
