Windshield Multifunction Sensor Mount Bracket Cover Replacement

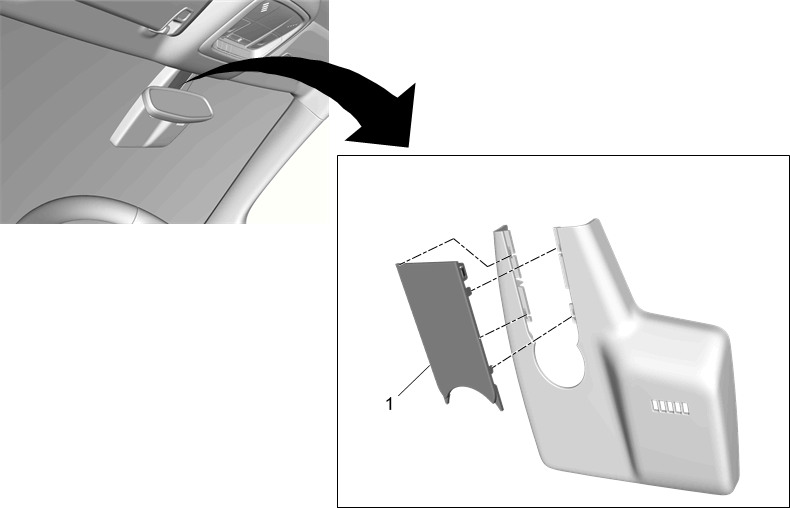

Fig 1: Windshield Multifunction Sensor Mount Bracket Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Multifunction Sensor Mount Bracket Cover Procedure Using a plastic trim tool, carefully pry downward on the sides of the bracket lower cover to release from the window. Squeeze tabs on bracket cover and pull apart from bracket lower cover.
