Moveable Window Wiring Schematics
>>
Front (AXA)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Front (AXA)

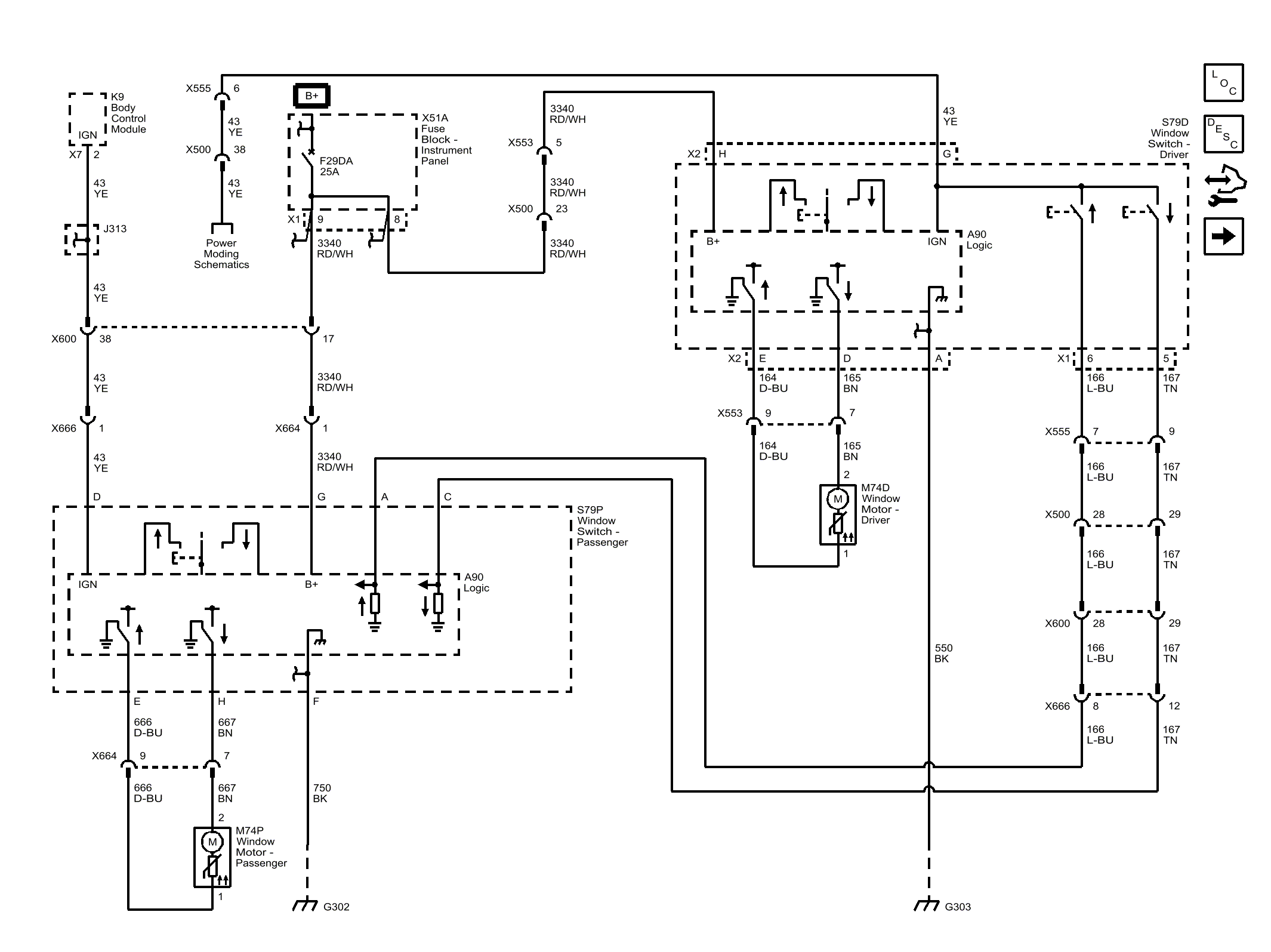

Fig 1: Front (AXA)
Courtesy of GENERAL MOTORS COMPANY
