Opening Liftgate Without Electrical Power

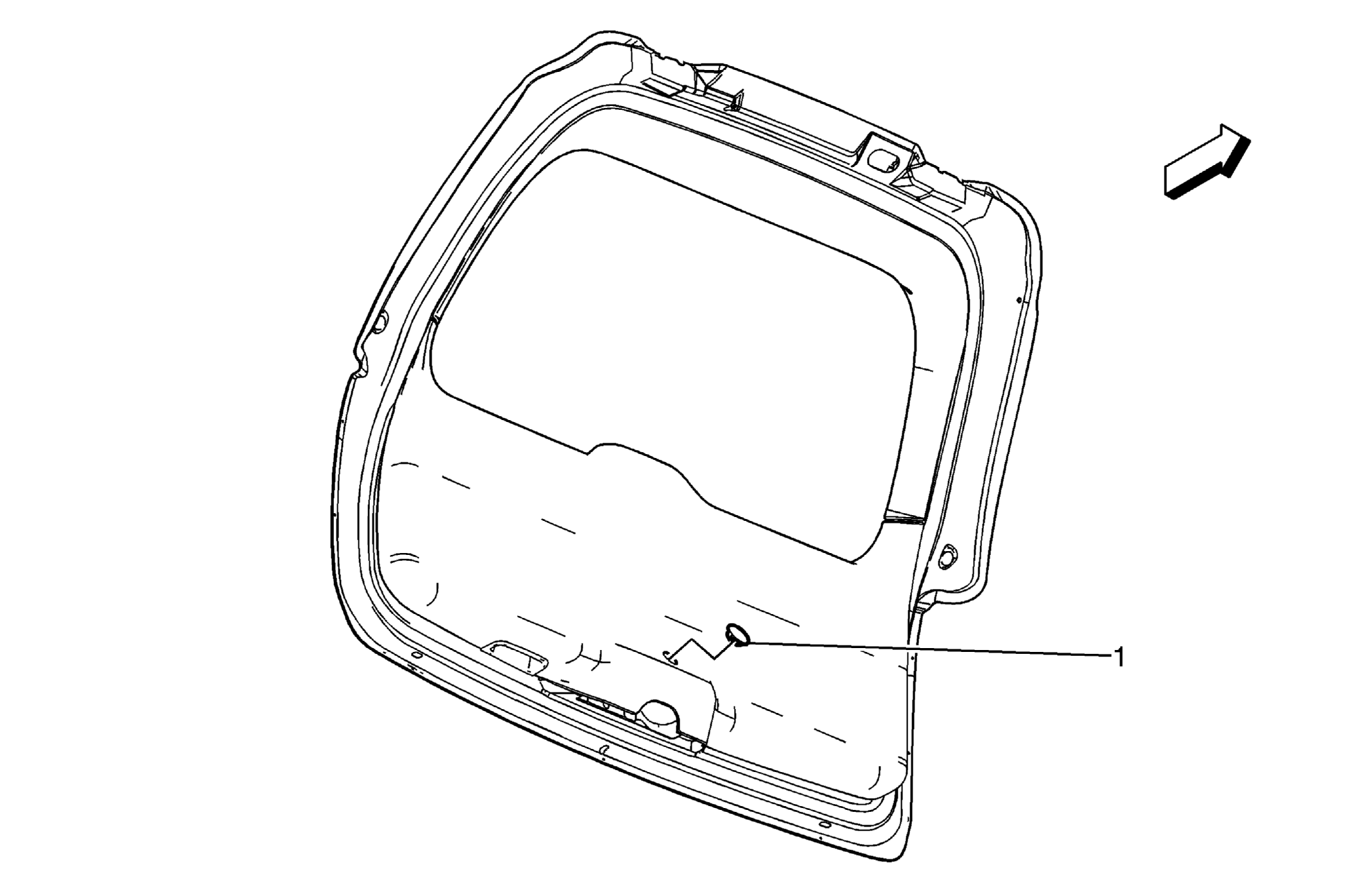

Fig 1: Opening Liftgate When There Is Electrical Failure
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Liftgate Trim Panel Plug
Procedure
From inside the vehicle lower the second and third, if applicable, row seats.
Use a small flat-bladed tool to remove the access plug from the liftgate lower interior trim panel.
Push on a silver lever located on the right just through the access hole to unlock the liftgate.
Open the liftgate from the outside of the vehicle using the exterior handle.
