Installation Procedure

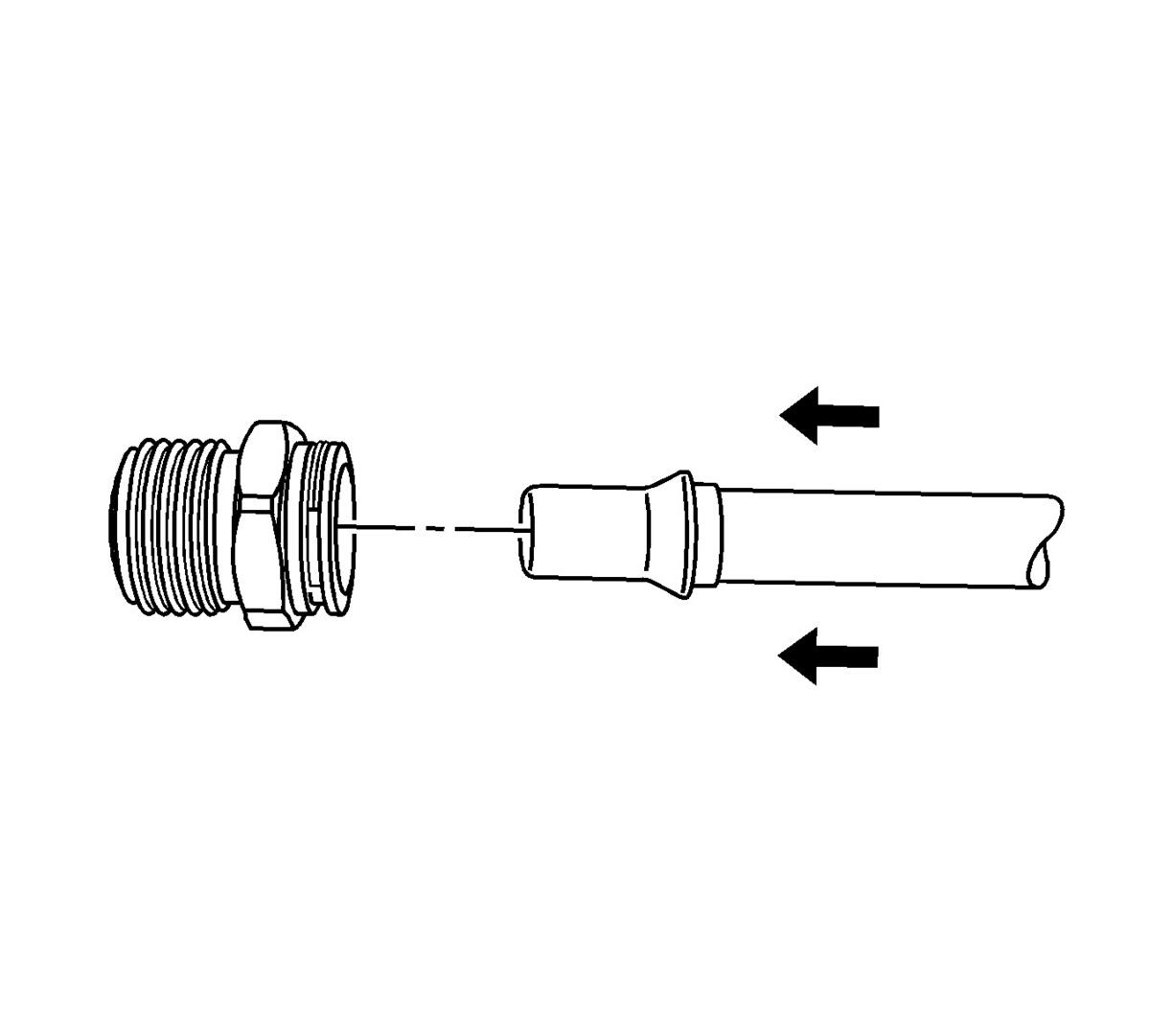

Fig 1: Generator Cooling Inlet Pipe & Generator Cooling Inlet Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Discard the TOC retaining clip and install a new retaining clip.

Install the TOC pipe into the TOC pipe fitting.
A distinct snap should be heard or felt when assembling the TOC pipe to the fitting.
Install the plastic cap onto the quick connect fitting. The plastic cap should snap onto fitting and spin freely by hand.
To ensure the cooler line is properly installed, give the cooler pipe a gentle pull.
