Installation Procedure

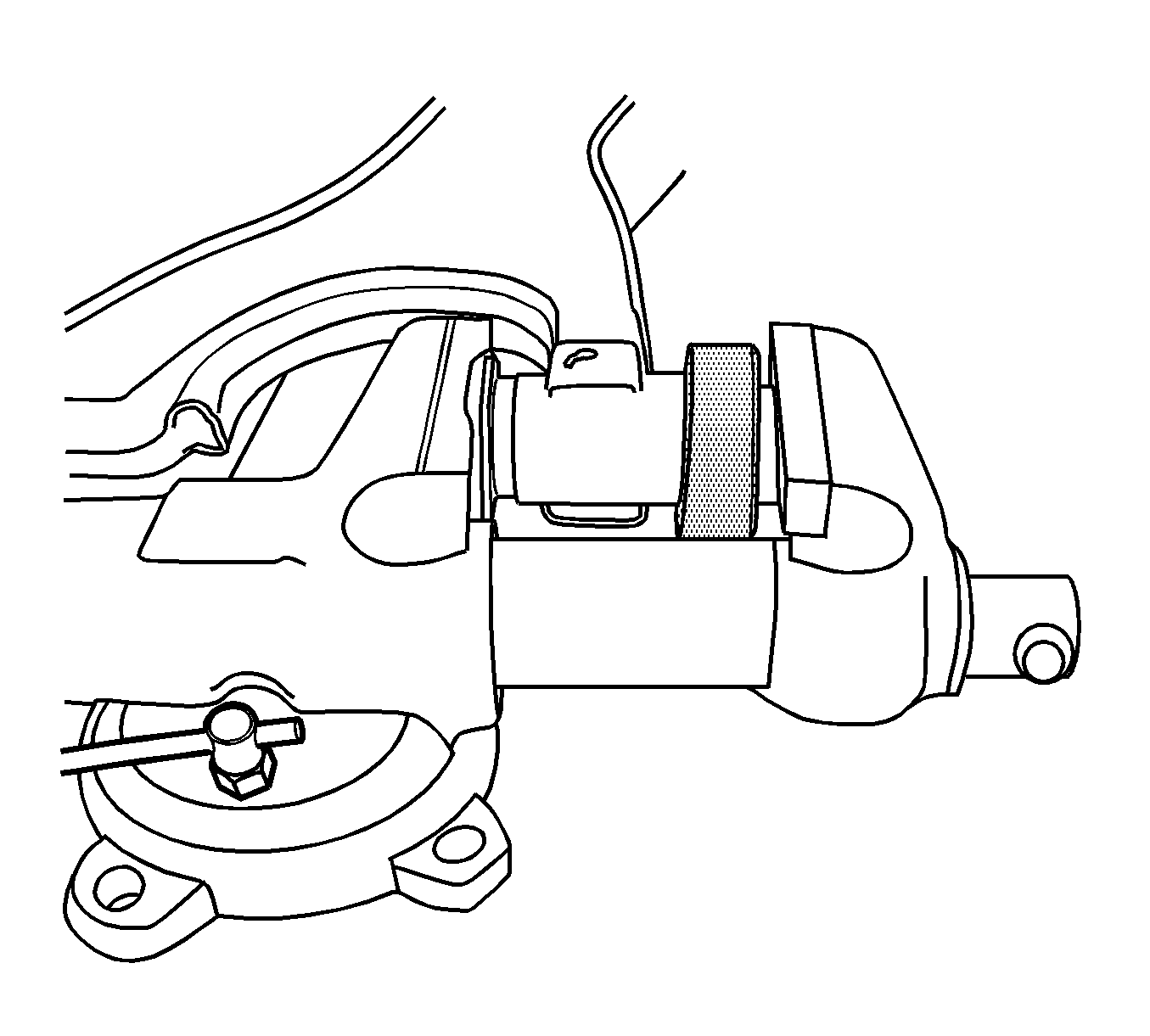

    Fig 1: Front & Rear Bushings
    GM1853577Courtesy of GENERAL MOTORS COMPANY
  1. Position the outer and inner portions of the front lower control arm rear bushing so that they are equally in the front lower control arm.
  2. Position the CH-48107  remover/installer on the outer portion of the front lower control arm rear bushing.
  3. Using a vise, compress the outer and inner portions of the front lower control arm rear bushing until they are fully seated.
  4. Remove the front lower control arm from the vise.
  5. Remove the CH-48107  remover/installer.
  6. Install Front Lower Control Arm - Lower Control Arm Replacement
