Front Lower Control Arm Bushing Replacement

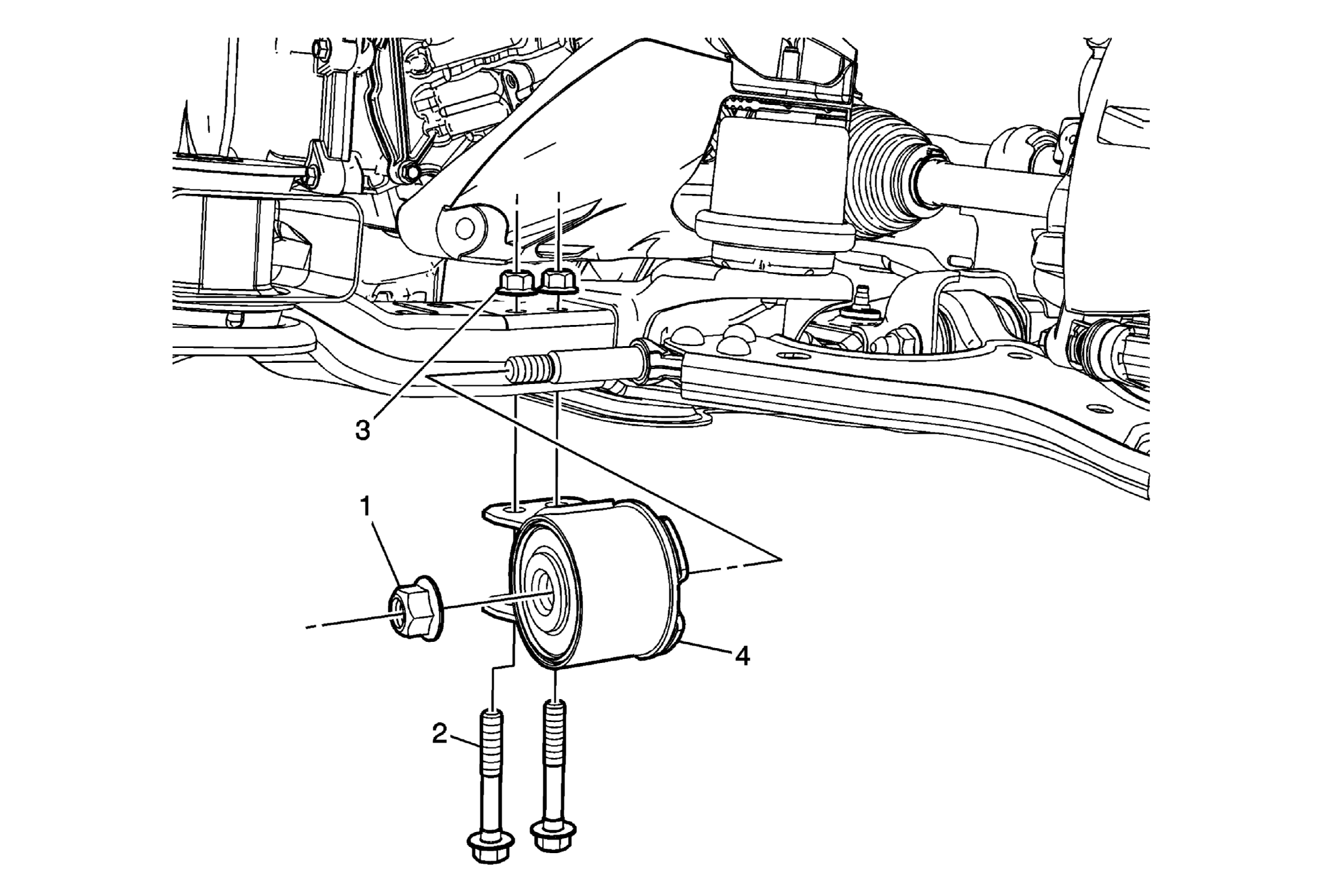

Fig 1: Front Lower Control Arm Bushing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
1	Front Lower Control Arm Front Nut CAUTION: Refer to Fastener Caution . Procedure Apply GM specified threadlocker, or an industry equivalent, to the front lower control arm front stud threads. Adhesives, Fluids, Lubricants, and Sealers NOTE: Ensure there are NO gaps in the threadlocker along the length of the filled area of the front lower control arm front stud threads. Allow the threadlocker to cure for approximately 10 minutes before installation of the front lower control arm front nut. Tighten 195 N.m (144 lb ft)
2	Front Lower Control Arm Front Bushing Bolt
3	Front Lower Control Arm Front Bushing Nut Tighten 75 N.m (55 lb ft)
4	Front Lower Control Arm Front Bushing NOTE: The front lower control arm front bushing is NOT serviced separately from the mounting bracket. Do NOT remove the bushing from the bracket.
