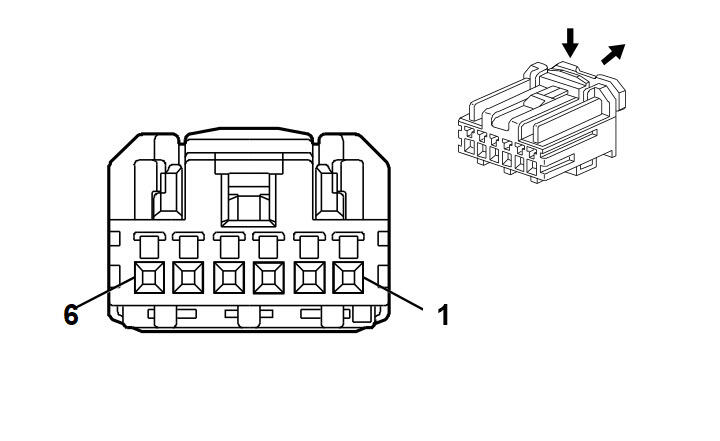

S39 Ignition Switch
|
|
Connector Part Information
- Harness Type: Steering Column
- OEM Connector: HCMPB-C06A-K
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 0.64 HCM Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
PK |
3 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 2 |
0.35 |
RD/WH |
1040 |
Battery Positive Voltage |
I |
- |
| 3 |
0.35 |
BN |
4 |
Accessory Ignition Voltage |
I |
- |
| 4 |
0.35 |
WH |
1390 |
Off/Run/Crank Ignition Voltage |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
WH/BK |
1073 |
Ignition Key Resistor Signal |
I |
- |
