K84 Keyless Entry Control Module X3
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

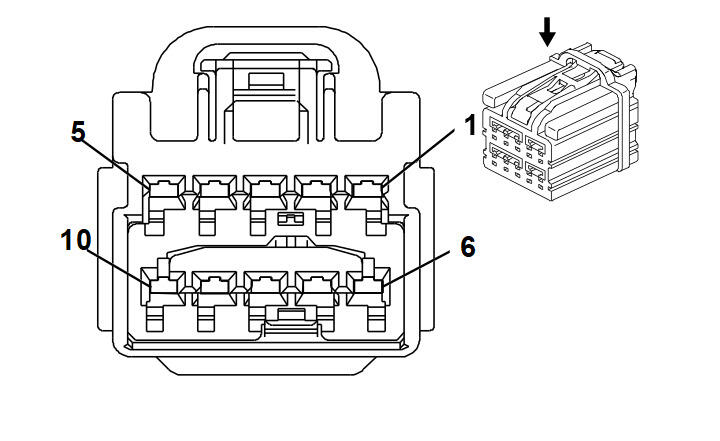

Connector Part Information
- Harness Type: Body
- OEM Connector: 7283-6455-40
- Service Connector: 22708788
- Description: 10-Way F YESC Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575829 |
J-35616-2A (GY) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
1 |
YE/GN |
3583 |
Passenger Door Unlatch Motor Unlatch Control |
I |
- |
| 5 |
1 |
VT/BU |
6666 |
Driver Door Unlatch Motor Unlatch Control |
I |
- |
| 6 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
1 |
GY/BK |
3579 |
Passenger Door Unlatch Motor Unlatch Low Reference |
I |
- |
| 10 |
1 |
GY |
3578 |
Driver Door Unlatch Motor Unlatch Low Reference |
I |
- |
