K111 Fuel Pump Driver Control Module
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

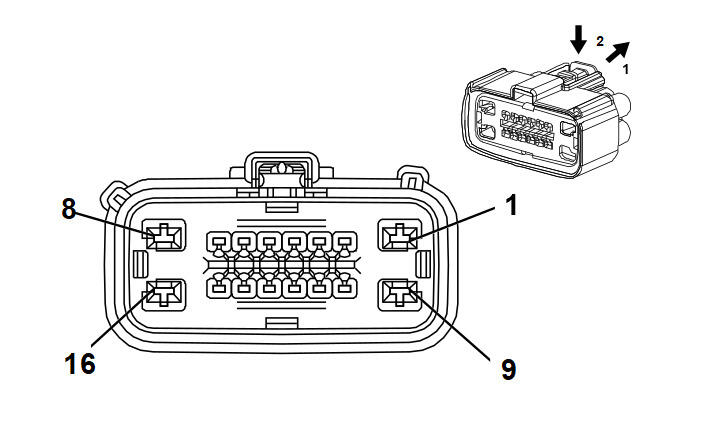

Connector Part Information
- Harness Type: Rear Chassis
- OEM Connector: 34985-2177
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way F 1.5, 2.8 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
RD/YE |
240 |
Battery Positive Voltage |
II |
- |
| 2 |
0.5 |
GN/GY |
465 |
Fuel Pump Primary Relay Control |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.5 |
BU/BK |
7493 |
High Speed GMLAN Serial Data (+)3 |
I |
- |
| 5 |
0.5 |
WH |
7494 |
High Speed GMLAN Serial Data (-)3 |
I |
- |
| 6 |
0.5 |
VT/GN |
839 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 7 |
0.5 |
VT/YE |
5985 |
Accessory Wakeup Serial Data |
I |
- |
| 8 |
2.5 |
GY |
120 |
Fuel Pump Control |
II |
- |
| 9 |
2.5 |
BK |
2050 |
Ground |
II |
- |
| 10 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.5 |
BK |
7444 |
Fuel System Control Module Shield Ground |
I |
- |
| 16 |
2.5 |
YE/BK |
1580 |
Fuel Pump Low Reference |
II |
- |
