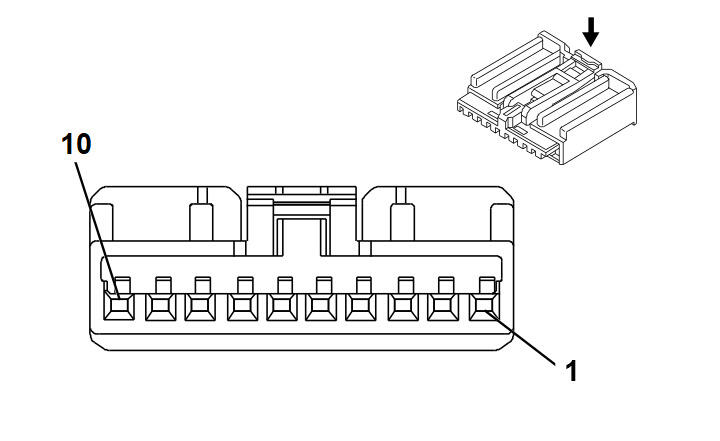

K109 Frontview Camera Module
|
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 15269795
- Service Connector: 13576634
- Description: 10-Way F 0.64 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575845 |
J-35616-64B (LT BU) |
J-38125-215A |
SAIT-A03T-M064 |
Yazaki 14 |
P |
P |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
850 |
Ground |
I |
UVF |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
RD/WH |
3140 |
Battery Positive Voltage |
I |
UVF |
| 4 |
0.35 |
WH |
3152 |
Lane Departure Warning Indicator Control |
I |
UVF |
| 5 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
D-GN |
5060 |
Low Speed GMLAN Serial Data |
I |
UVF |
| 8 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
PK |
3153 |
Lane Departure Warning Disable Switch Signal |
I |
UVF |
