Horn Replacement

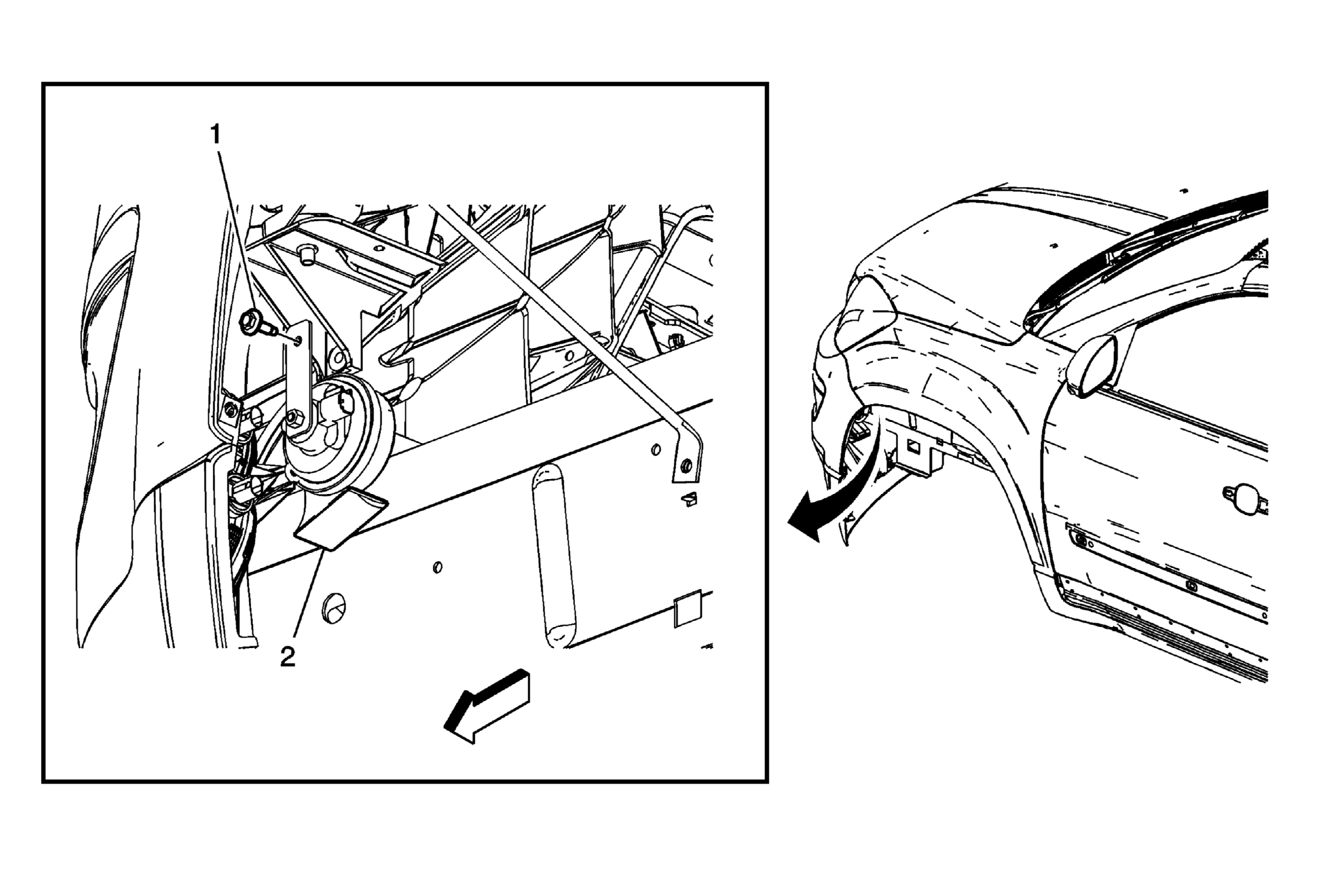

Fig 1: Horn

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner (front). Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) .
1	Horn Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Horn Procedure Disconnect the electrical connector.
