Component Locations
>>
Component Locator - Electrical Center Identification Views (2 Of 2)
>>
Electrical Center Identification Views
>>
X51A Fuse Block - Instrument Panel Bottom View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
X51A Fuse Block - Instrument Panel Bottom View

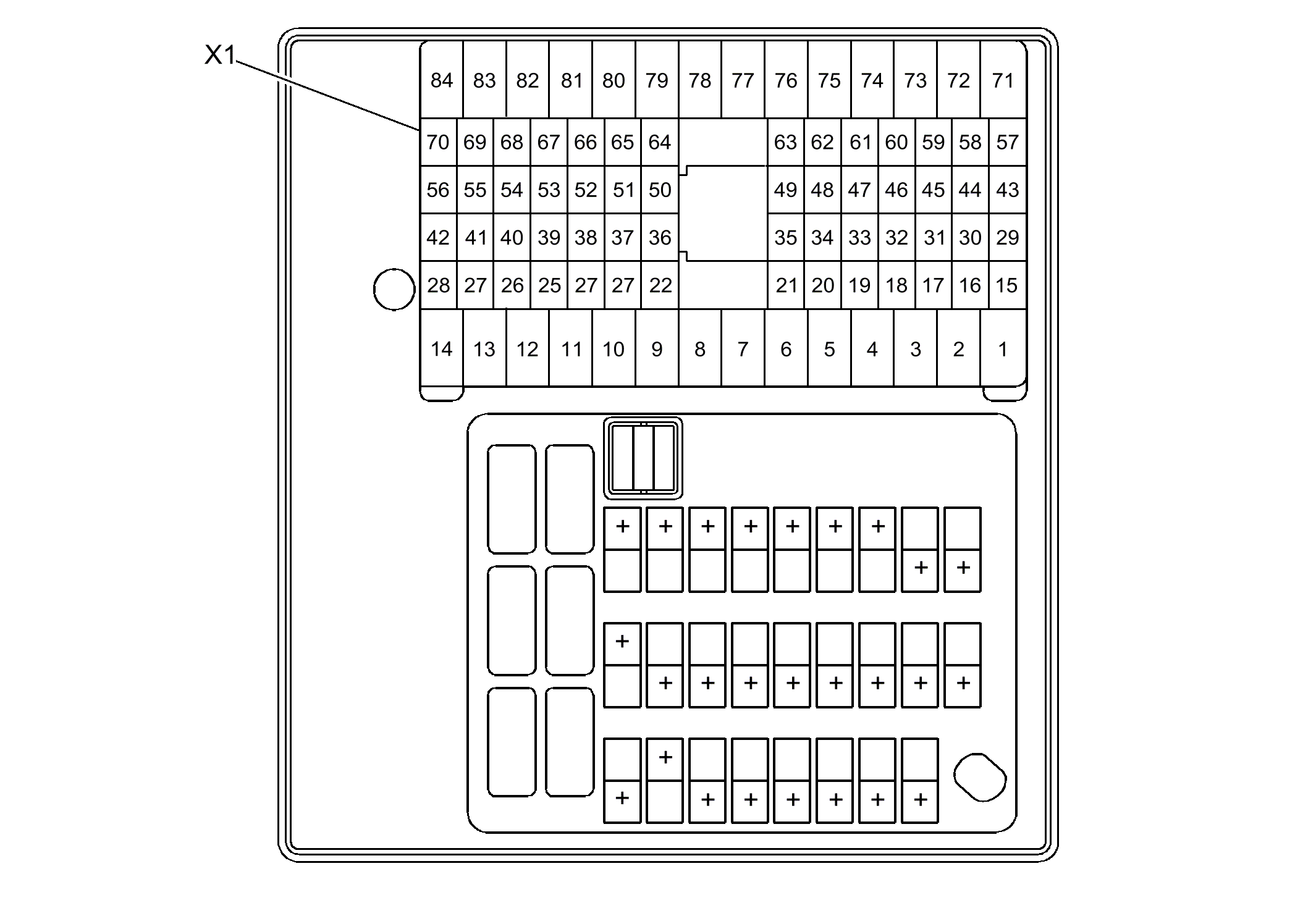

Fig 1: X51A Fuse Block - Instrument Panel Bottom View
Courtesy of GENERAL MOTORS COMPANY
