Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Replacement

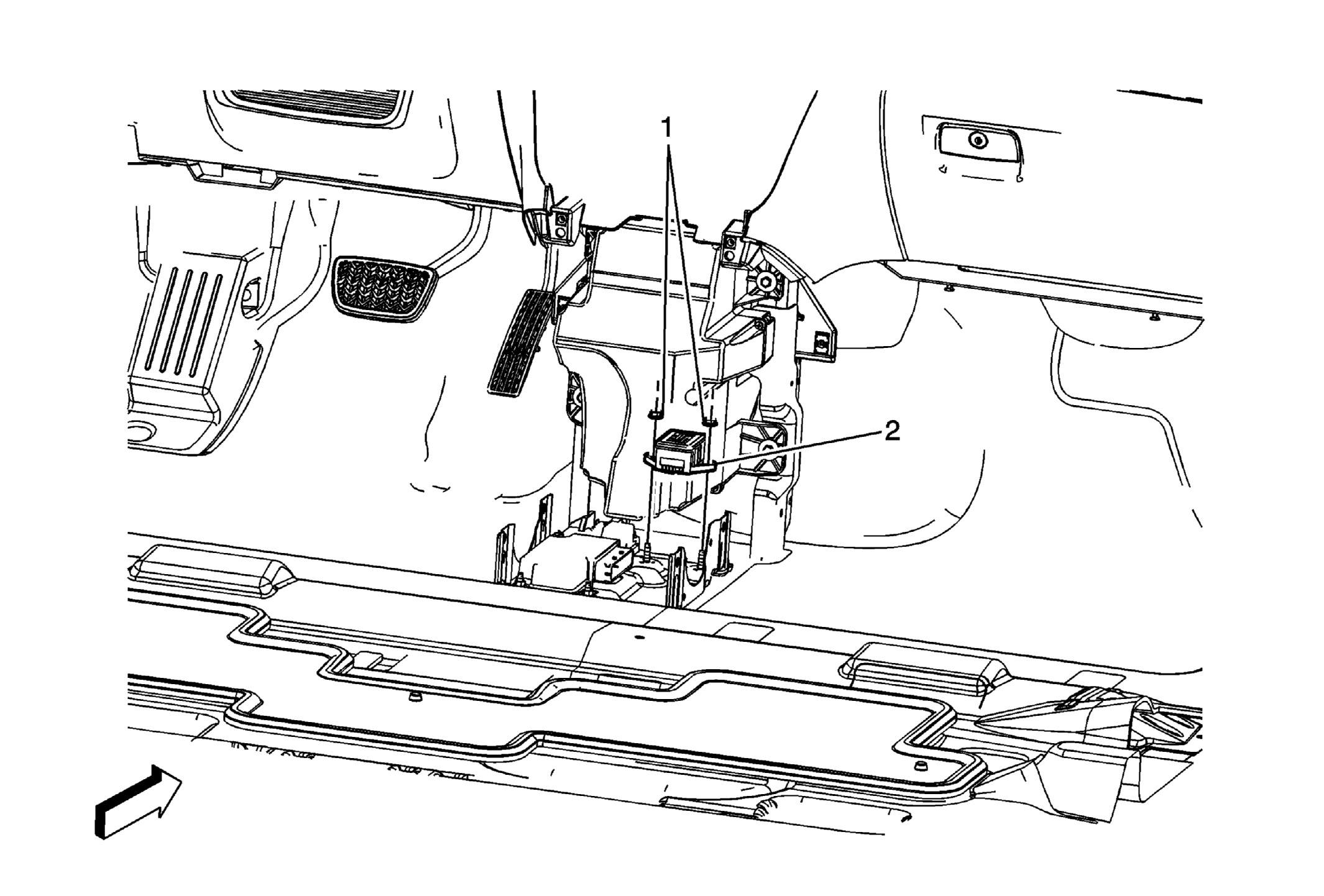

Fig 1: Vehicle Yaw Sensor With Vehicle Lateral Accelerometer
GM1867525Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove front floor console. Refer to Front Floor Console Replacement (Acadia)Front Floor Console Replacement (Enclave)Front Floor Console Replacement (Traverse) .
1 Vehicle Yaw Sensor and Lateral Accelerometer Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb ft)
2 Vehicle Yaw with Vehicle Lateral Accelerometer Sensor Assembly
Procedure
Disconnect the electrical connector.
