Front Seat Heater Control Module Replacement

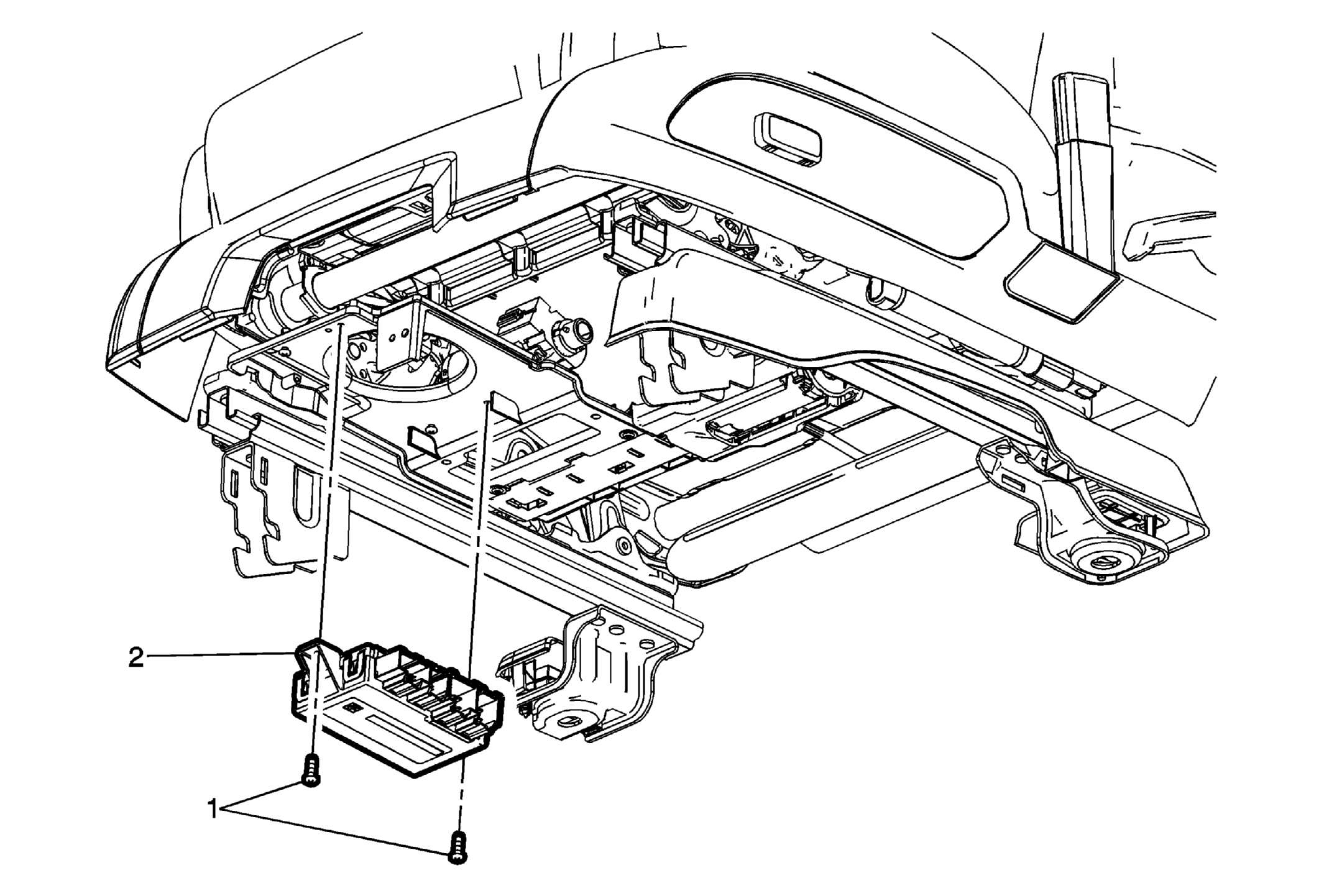

Fig 1: Front Seat Heater Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Heater Control Module Retainer (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Front Seat Heater Control Module Procedure Disconnect the electrical connectors. Remove the module from the bracket by pulling downward away from the seat cushion frame. Refer to Control Module References for programing and setup information.

Callout

Component Name

Front Seat Heater Control Module Retainer (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Front Seat Heater Control Module

Procedure

Disconnect the electrical connectors.
Remove the module from the bracket by pulling downward away from the seat cushion frame.
Refer to Control Module References for programing and setup information.
