Passenger Seat Lumbar Control Switch Replacement

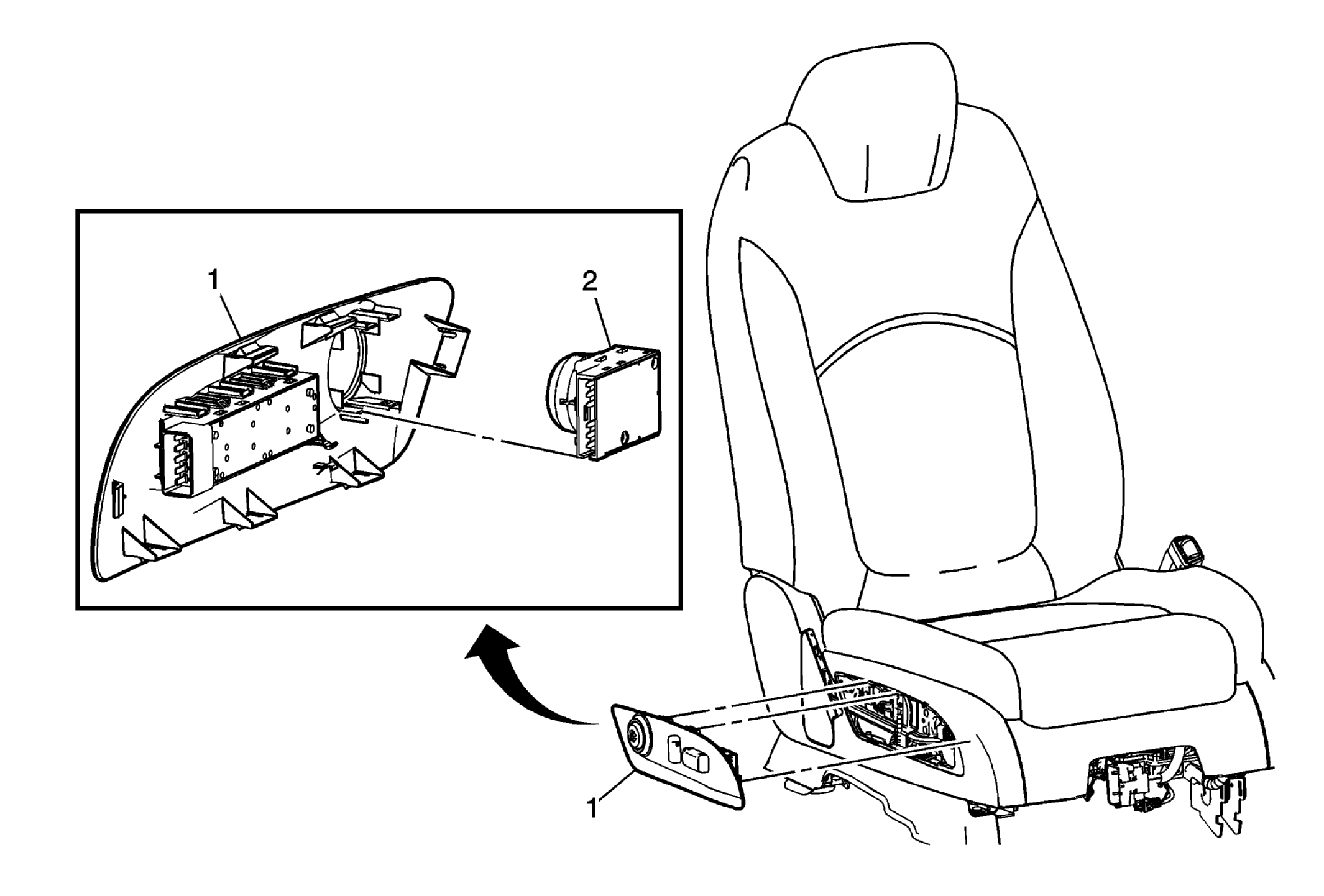

Fig 1: Passenger Seat Lumbar Control Switch
GM2380977Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Passenger Seat Adjuster Switch Mounting Plate

Procedure

  1. Using a non-metallic flat-bladed tool, release the retainer tabs starting at the rear edge and working forward while pulling outward on the mounting plate.
  2. Disconnect the electrical connectors from the switch assemblies.
2 Passenger Seat Lumbar Control Switch Assembly
Procedure
Use a flat-bladed tool to release the switch from the mounting plate.
