Immobilizer Wiring Schematics: Immobilizer

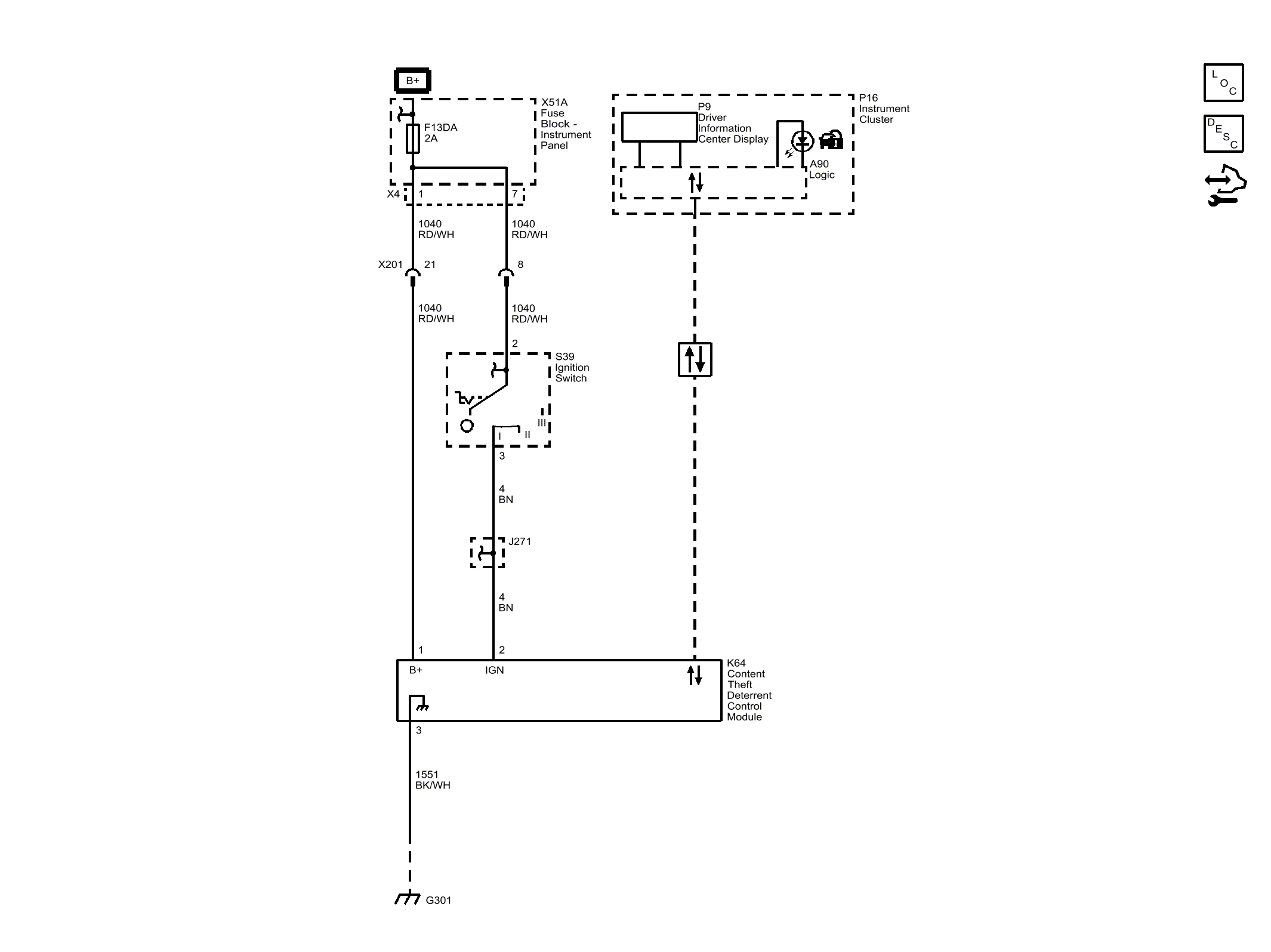

Fig 1: Immobilizer

GM4406417

Courtesy of GENERAL MOTORS COMPANY
