Liftgate Side Sensor Replacement (Acadia, Enclave, Traverse)

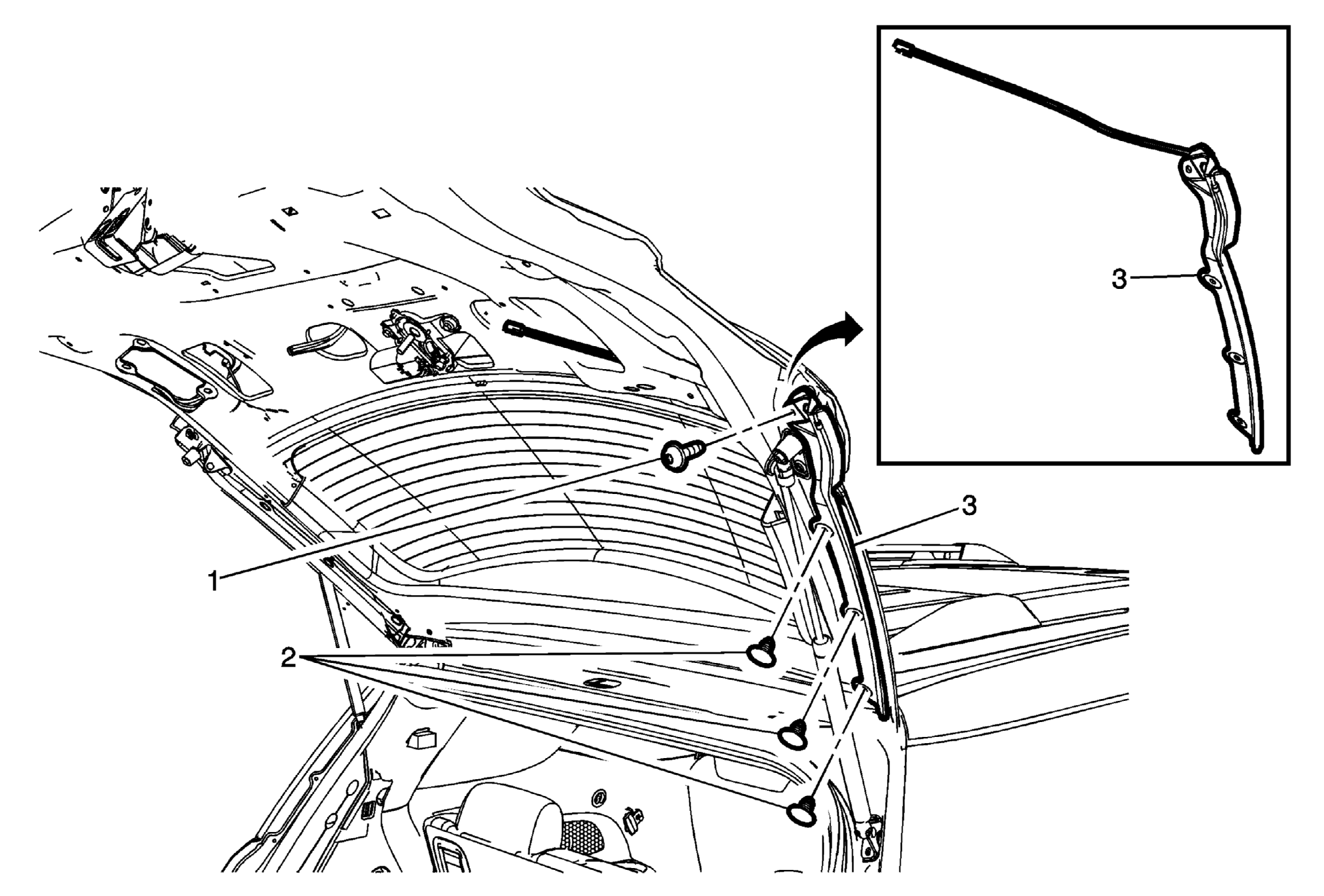

Fig 1: Liftgate Side Sensor (Acadia, Enclave, Traverse)
GM2878217Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Traverse)Liftgate Trim Panel Replacement (Enclave)Liftgate Trim Panel Replacement (Acadia) .
  2. Disconnect the electrical connector.
1 Liftgate Side Upper Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Liftgate Side Upper Sensor Retainer (Qty: 3)
NOTE:

The retainers are ONE time use ONLY. They must be replaced after being removed.
3 Liftgate Side Upper Sensor
