Chevrolet
>>
2017
>>
Traverse LS Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Cellular System, Entertainment System, And Navigation System
>>
Schematic Wiring Diagrams
>>
Video System Wiring Schematics
>>
U42
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Video System Wiring Schematics: U42

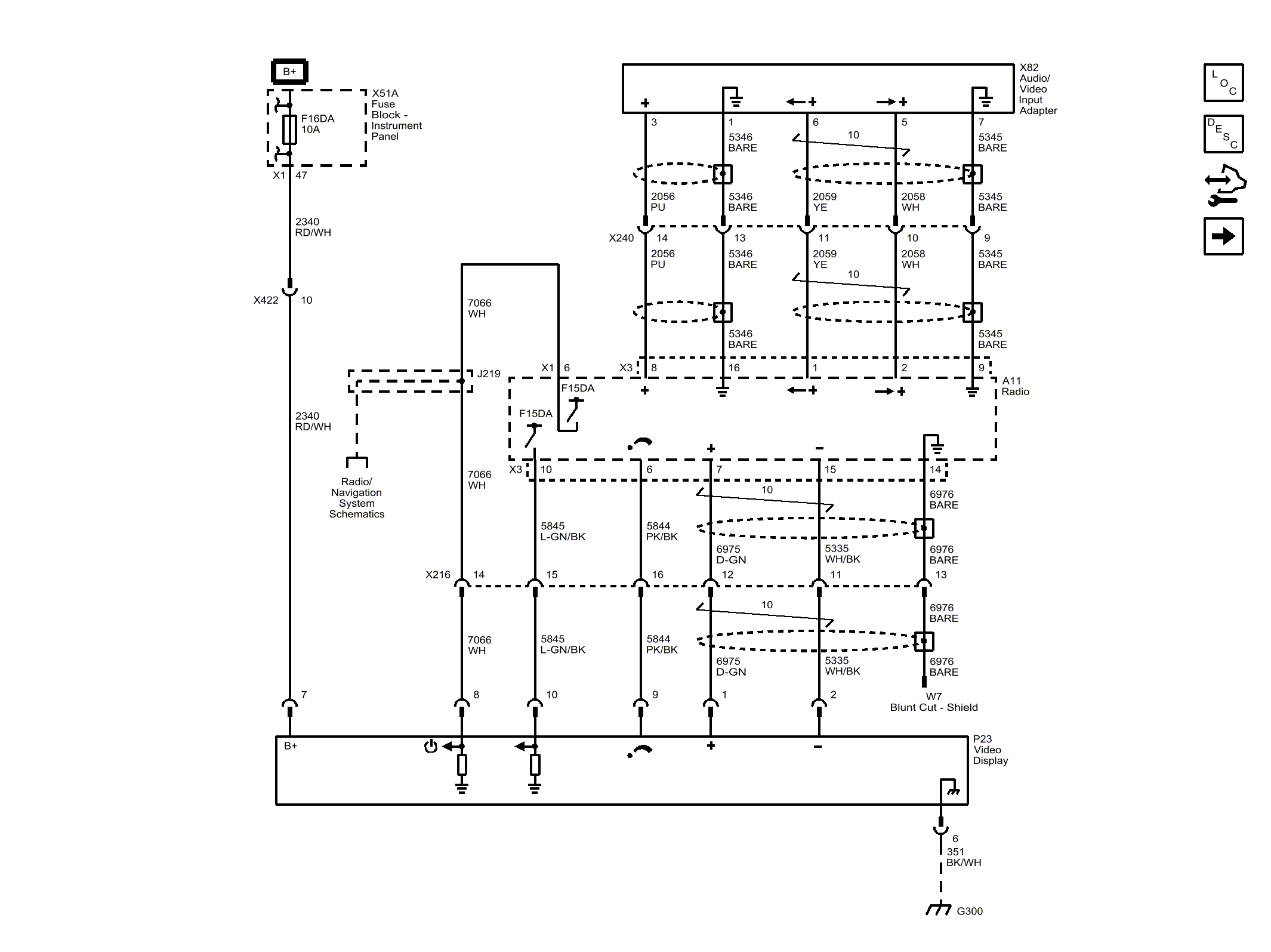

Fig 1: U42
Courtesy of GENERAL MOTORS COMPANY
