Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel (Chevrolet/GMC)

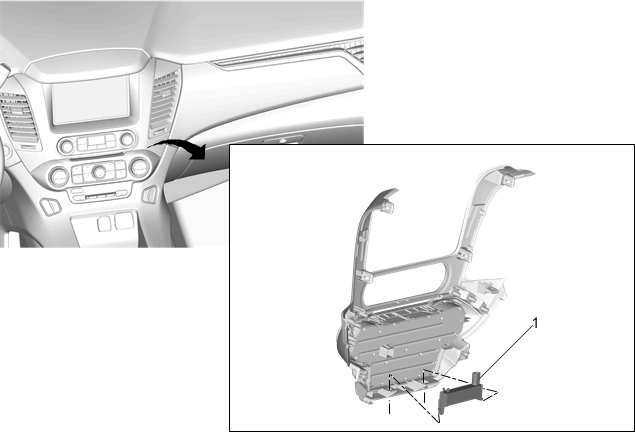

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel (Chevrolet/GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel accessory center trim plate. Refer to Instrument Panel Accessory Center Trim Plate Replacement (Chevrolet/GMC) .
1	Ignition Lock Key Transmitter Antenna Procedure  Unsnap antenna from the instrument panel accessory trim plate.
