Ignition Coil Replacement (L5Q)

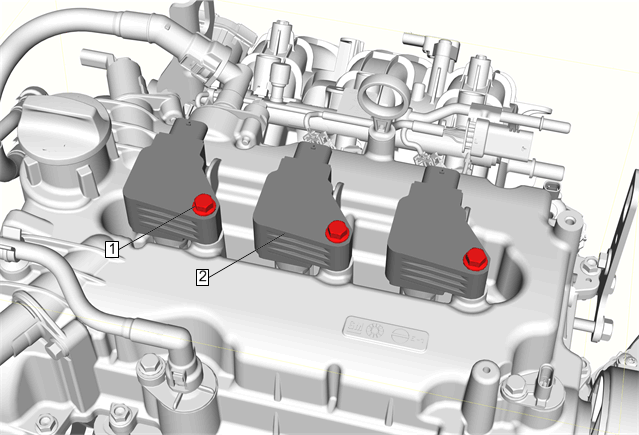

Fig 1: Ignition Coil

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the 3 ignition coil connectors.
1	Ignition Coil Cover Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove the ignition coil bolts (1). Tighten 10 N.m (89 lb in)
2	Ignition Coil (Qty: 3) Procedure Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Disconnect the 3 ignition coil connectors.

Ignition Coil Cover Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Procedure
Remove the ignition coil bolts (1).
Tighten
10 N.m (89 lb in)

Ignition Coil (Qty: 3)
Procedure
Transfer parts as necessary.
