X50D Fuse Block - Battery Top View

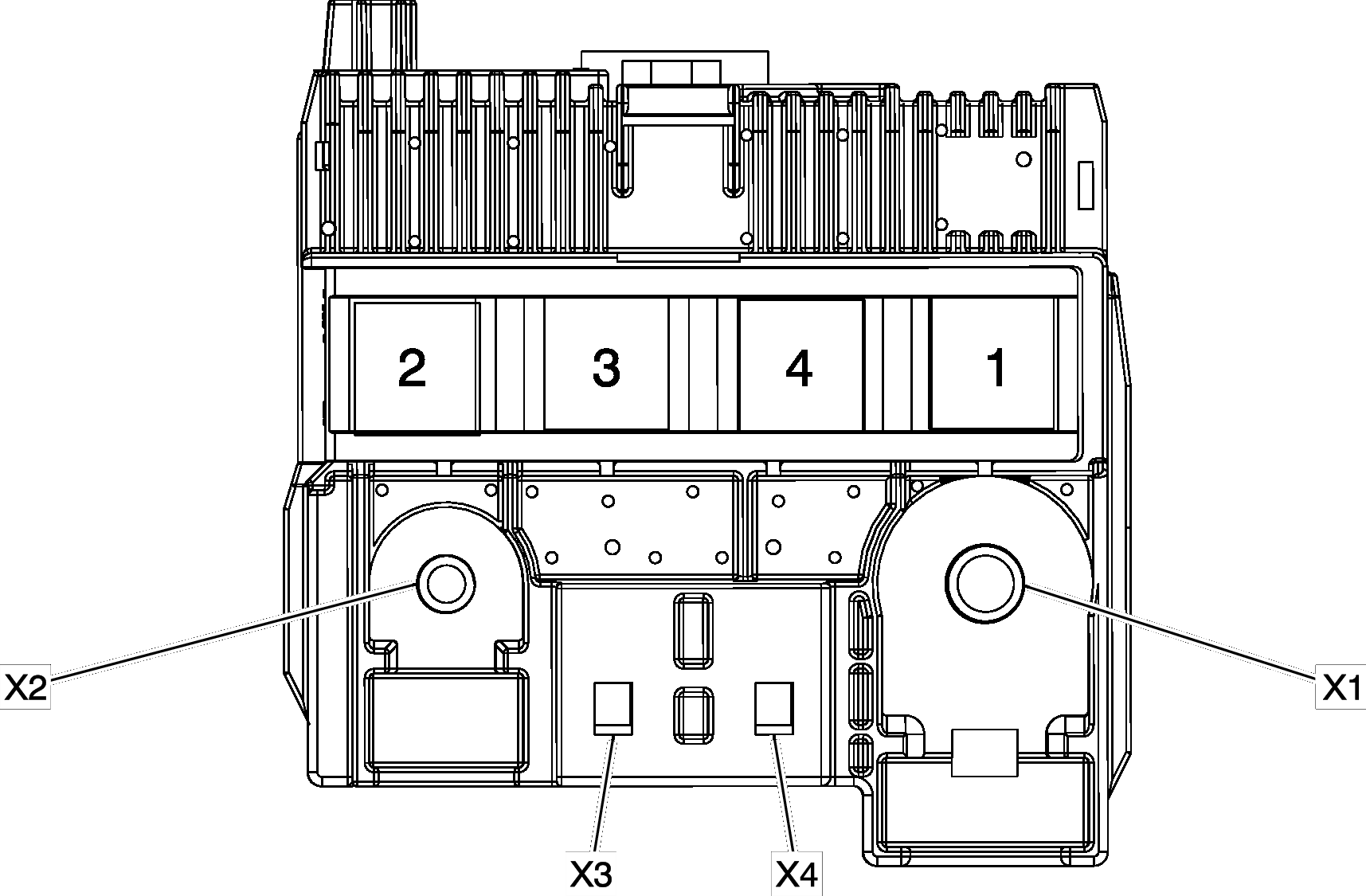

Fig 1: X50D Fuse Block - Battery Top View
GM4154027Courtesy of GENERAL MOTORS COMPANY
X50D FUSE BLOCK - BATTERY FUSE IDENTIFICATION

No. Device Label Name Device Assigned Name Rating Description
Fuses
F1 - F1UD 400 A G13 Generator, M64 Starter Motor
F2 - F2UD 150 A X50A Fuse Block - Underhood
F3 - F3UD 100 A X51A Fuse Block - Instrument Panel
F4 - F4UD 80 A K43 Power Steering Control Module
