Radiator Inlet Hose Replacement
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

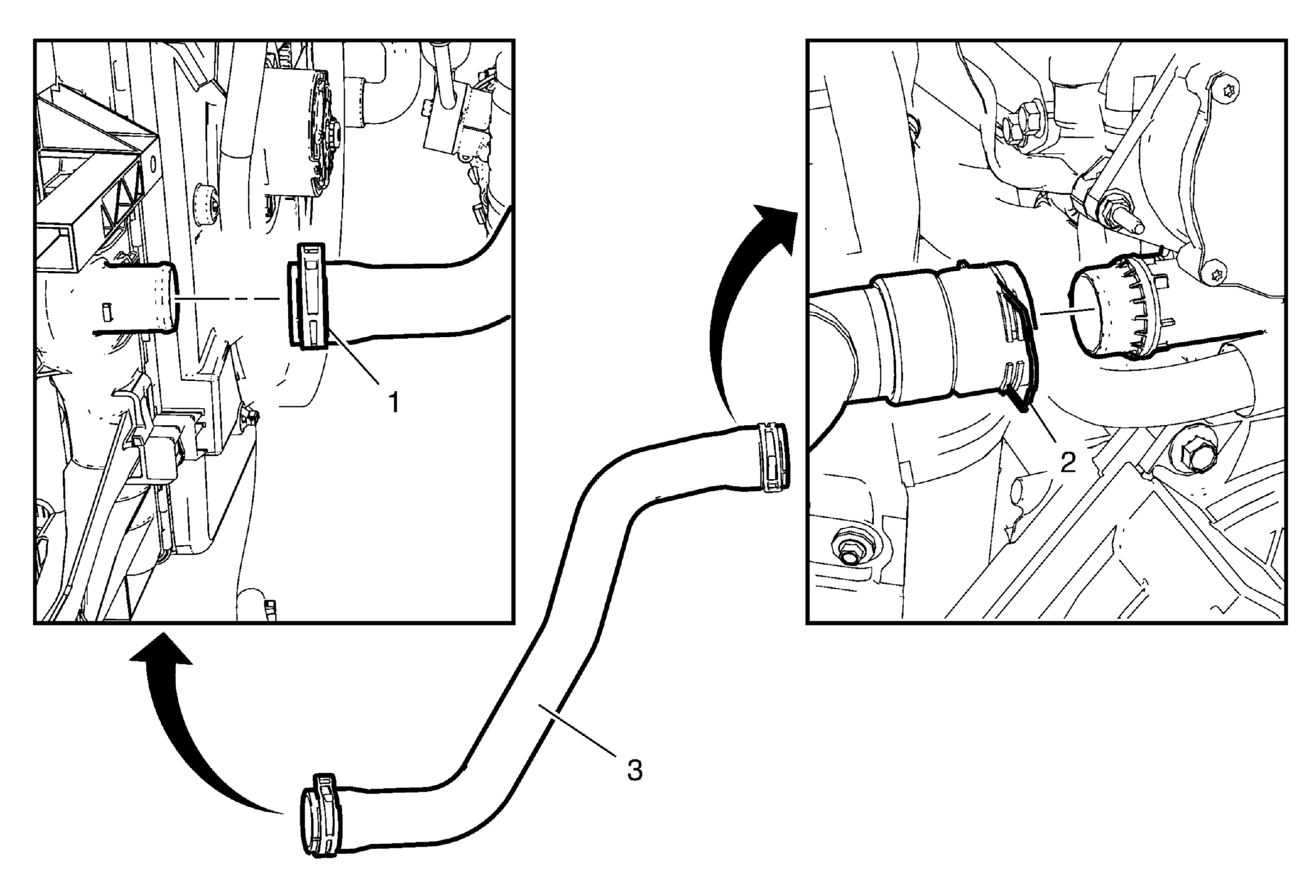

| Callout | Component Name |
|---|---|
| Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling . |
|
| 1 | Radiator Inlet Hose Clamp Procedure Place a drain pan below the vehicle. |
| 2 | Radiator Inlet Hose Retainer Spring |
| 3 | Radiator Inlet Hose |
