Sonic Premier, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Body Control System Wiring Schematics
>>
Power, Ground, Data Communications, and Subsystem References (1 of 5)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power, Ground, Data Communications, and Subsystem References (1 of 5)

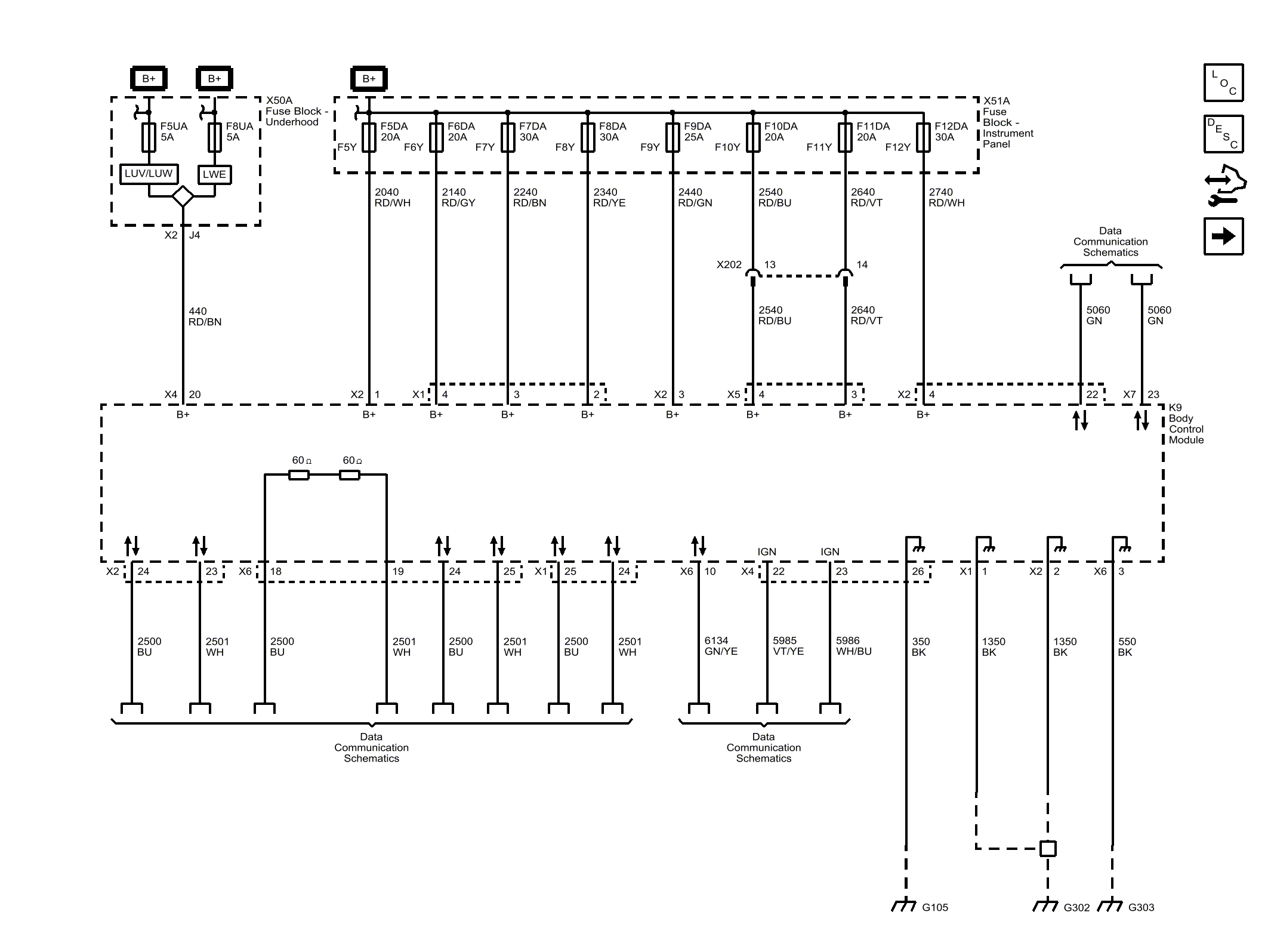

Fig 1: Power, Ground, Data Communications, and Subsystem References Wiring Schematic (1 of 5)
Courtesy of GENERAL MOTORS COMPANY
