Vehicle Stability Control System Switch Replacement

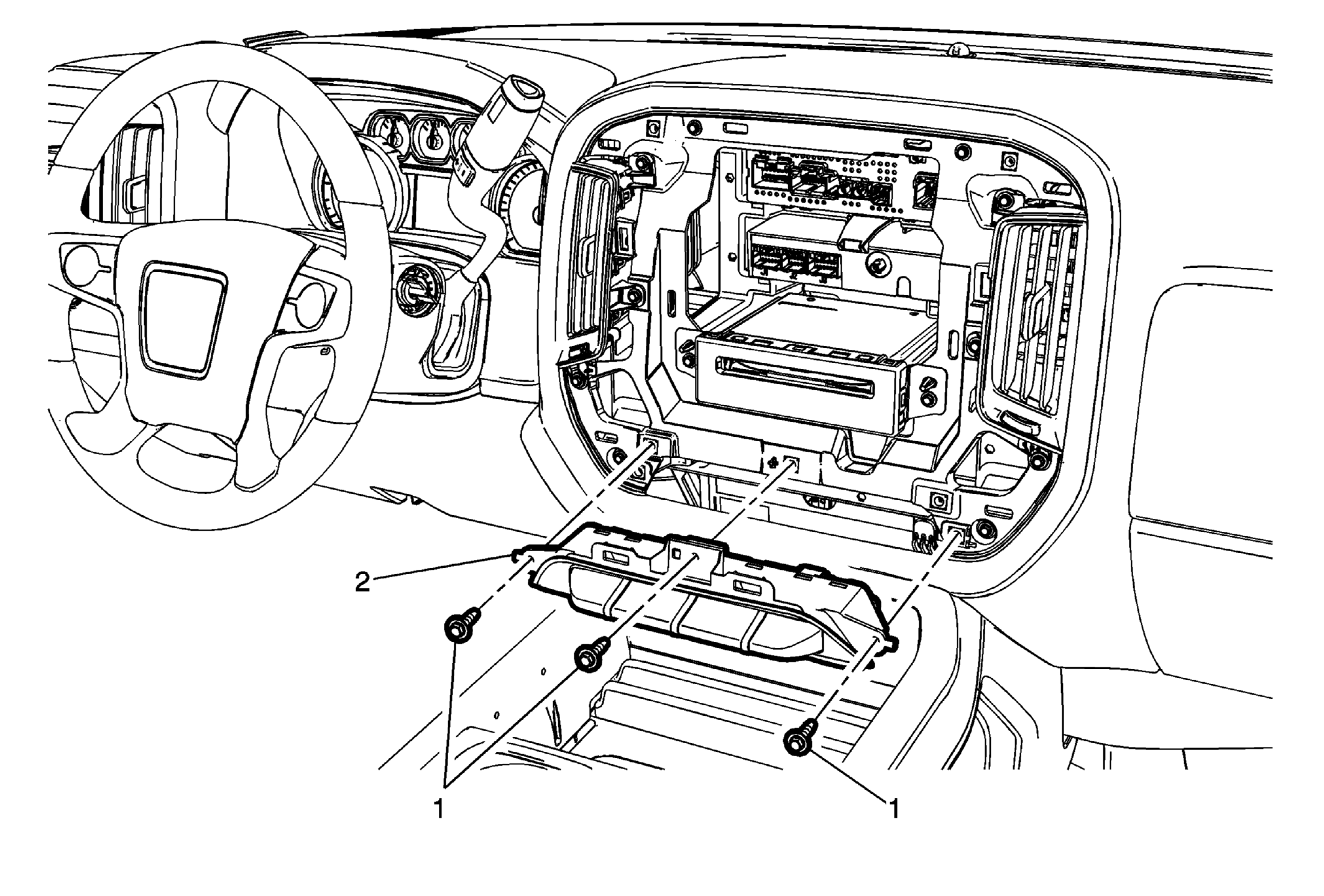

Fig 1: Vehicle Stability Control System Switch
GM3256751Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
1 Vehicle Stability Control System Switch Fasteners (Qty 3)
CAUTION:

Refer to Fastener Caution .
2 Vehicle Stability Control System Switch
Procedure
Disconnect the electrical connector.
