Rearview Camera

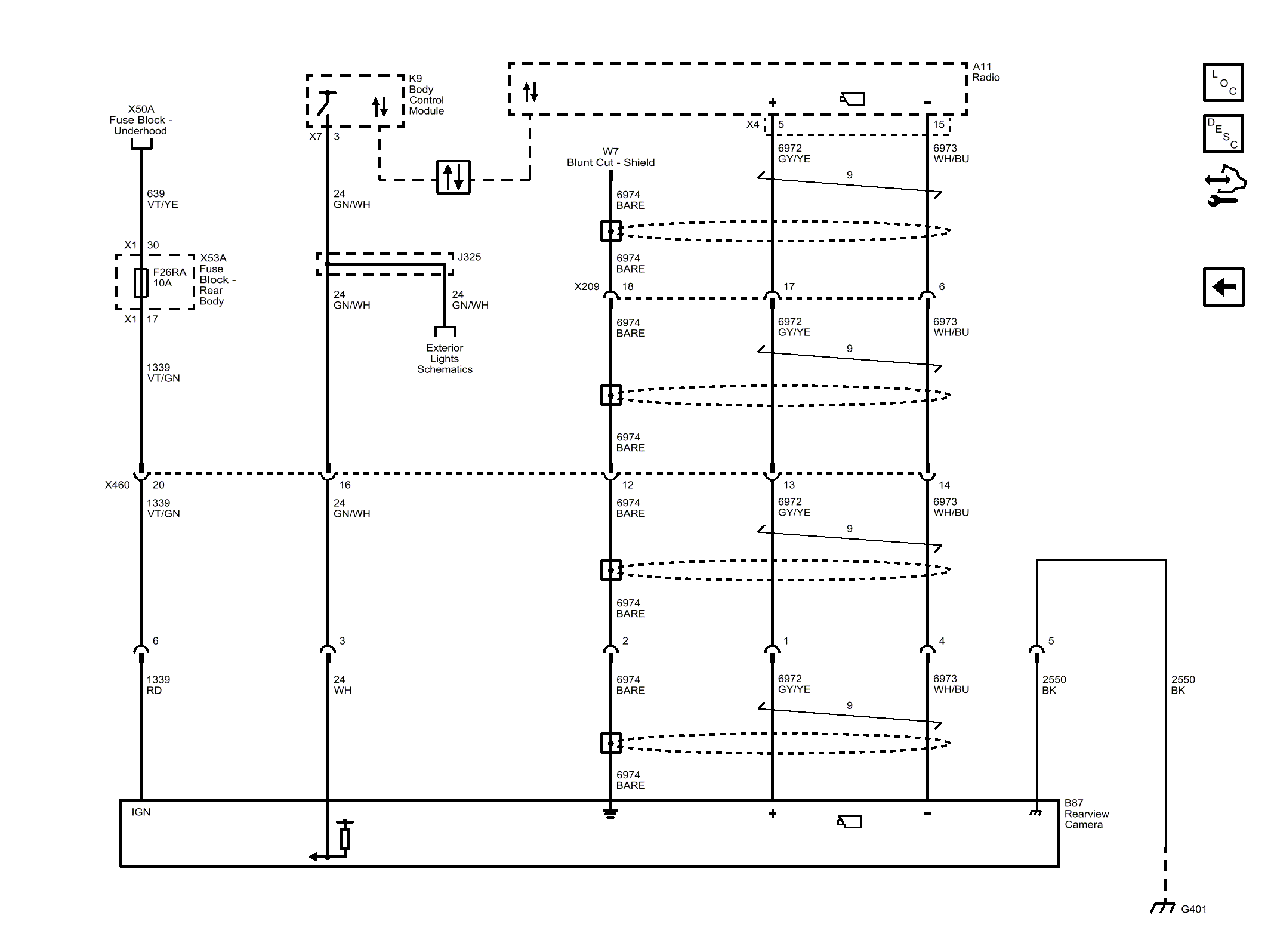

Fig 1: Rearview Camera
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
