Front Seat Belt Front Trim Cover Replacement

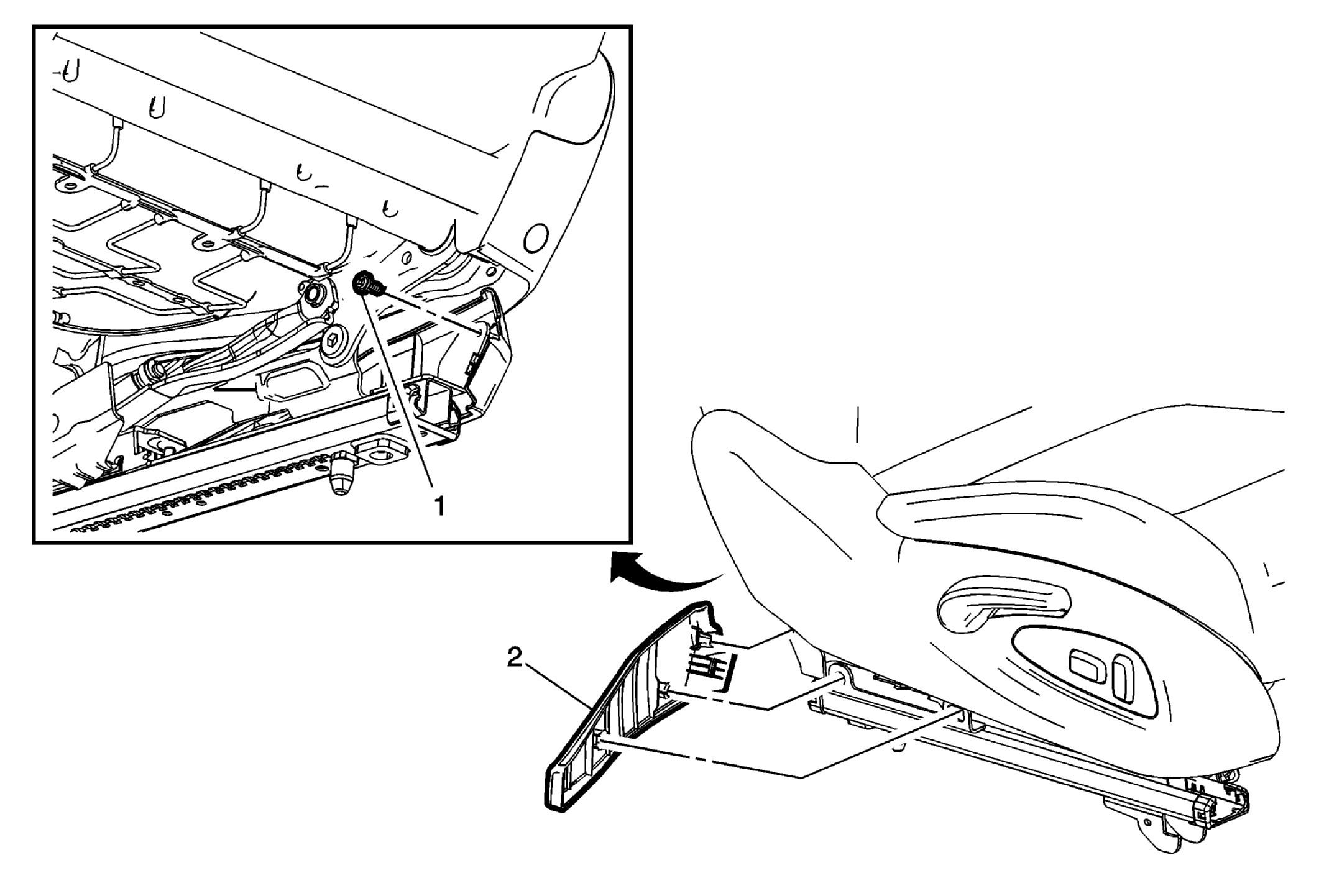

Fig 1: Front Seat Belt Front Trim Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Belt Front Trim Cover Fastener CAUTION: Refer to Fastener Caution .
2	Front Seat Belt Front Trim Cover Procedure Raise the seat to the highest seat position. Disengage the rear tab of the cover from the seat track. Remove the trim cover by pulling outboard.

Callout

Component Name

Front Seat Belt Front Trim Cover Fastener

CAUTION:

Refer to Fastener Caution .

Front Seat Belt Front Trim Cover

Procedure

Raise the seat to the highest seat position.
Disengage the rear tab of the cover from the seat track.
Remove the trim cover by pulling outboard.
