Front Fender Components

Front Fender Components

Items
1: P12L Horn - Left P12L Horn - Left
2: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
3: B55 Hood Ajar Switch B55 Engine Hood Switch
4: B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
5: P12R Horn - Right P12R Horn - Right
6: B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor
7: G24 Windshield Washer Pump G24 Windshield Washer Pump

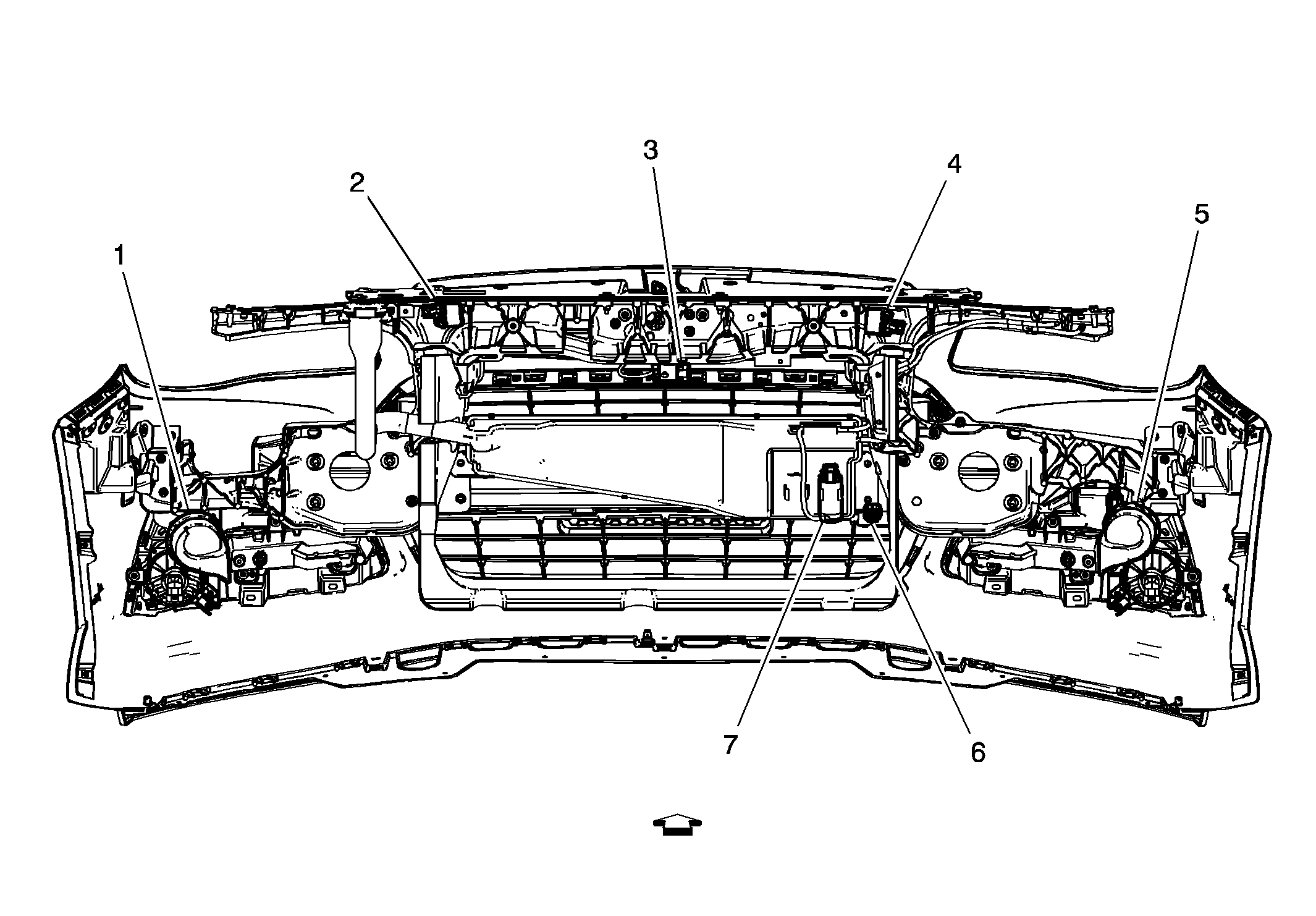

Fig 1: Front Fender Components
GM3600183Courtesy of GENERAL MOTORS COMPANY


Front Fender Components

Items
1: E4Y Turn Signal Repeater Lamp - Left E4Y Turn Signal Repeater Lamp - Left
2: E4Z Turn Signal Repeater Lamp - Right E4Z Turn Signal Repeater Lamp - Right
Fig 1: Front Fender Components
GM3600185Courtesy of GENERAL MOTORS COMPANY
