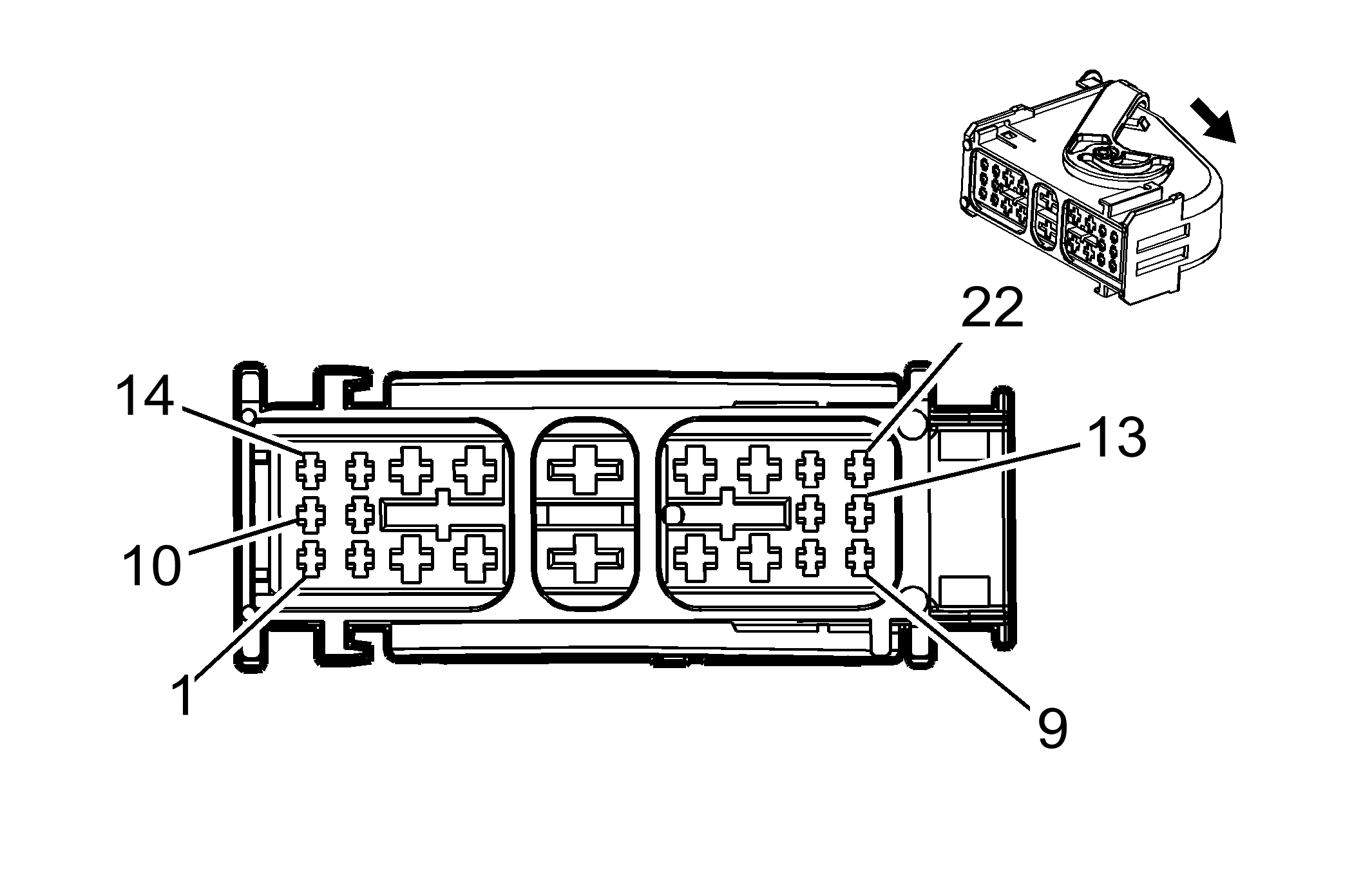

X53A Fuse Block - Rear Body X3
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13709539
- Service Connector: 13576559
- Description: 22-Way F 1.5, 2.8 DSQ, 6.3 Ducon Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575730 |
J-35616-42 (RD) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13575774 |
J-35616-14 (GN) |
J-38125-560 |
962943-5 |
Lear 16 |
E |
A |
| III |
13575774 |
J-35616-14 (GN) |
J-38125-560 |
Not Available |
Not Available |
Not Available |
Not Available |
| IV |
13575781 |
J-35616-35 (VT) |
J-38125-36 |
4-965999-1 |
Lear 25 |
4 |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
2 |
RD/BN |
3640 |
Battery Positive Voltage |
IV |
- |
| 4 |
2 |
RD/BU |
540 |
Battery Positive Voltage |
IV |
- |
| 5 |
2.5 |
RD/BU |
1842 |
Battery Positive Voltage |
I |
- |
| 6 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
VT/BU |
3263 |
Logistic Mode Relay Open Control |
III |
- |
| 12 |
0.35 |
BK |
2550 |
Ground |
III |
- |
| 13 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
2.5 |
RD/BU |
1842 |
Battery Positive Voltage |
I |
- |
| 19 - 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.35 |
GY/YE |
6188 |
Lift Glass/Rear Compartment Lid Motor Release Control |
III |
- |
| 22 |
0.5 |
BU/WH |
6128 |
Rear Closure Unlatch Motor Unlatch Control |
II |
- |
