Engine Controls And Fuel - 6.2L (LS3) - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Fuel Controls - Fuel Pump Controls
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuel Controls - Fuel Pump Controls

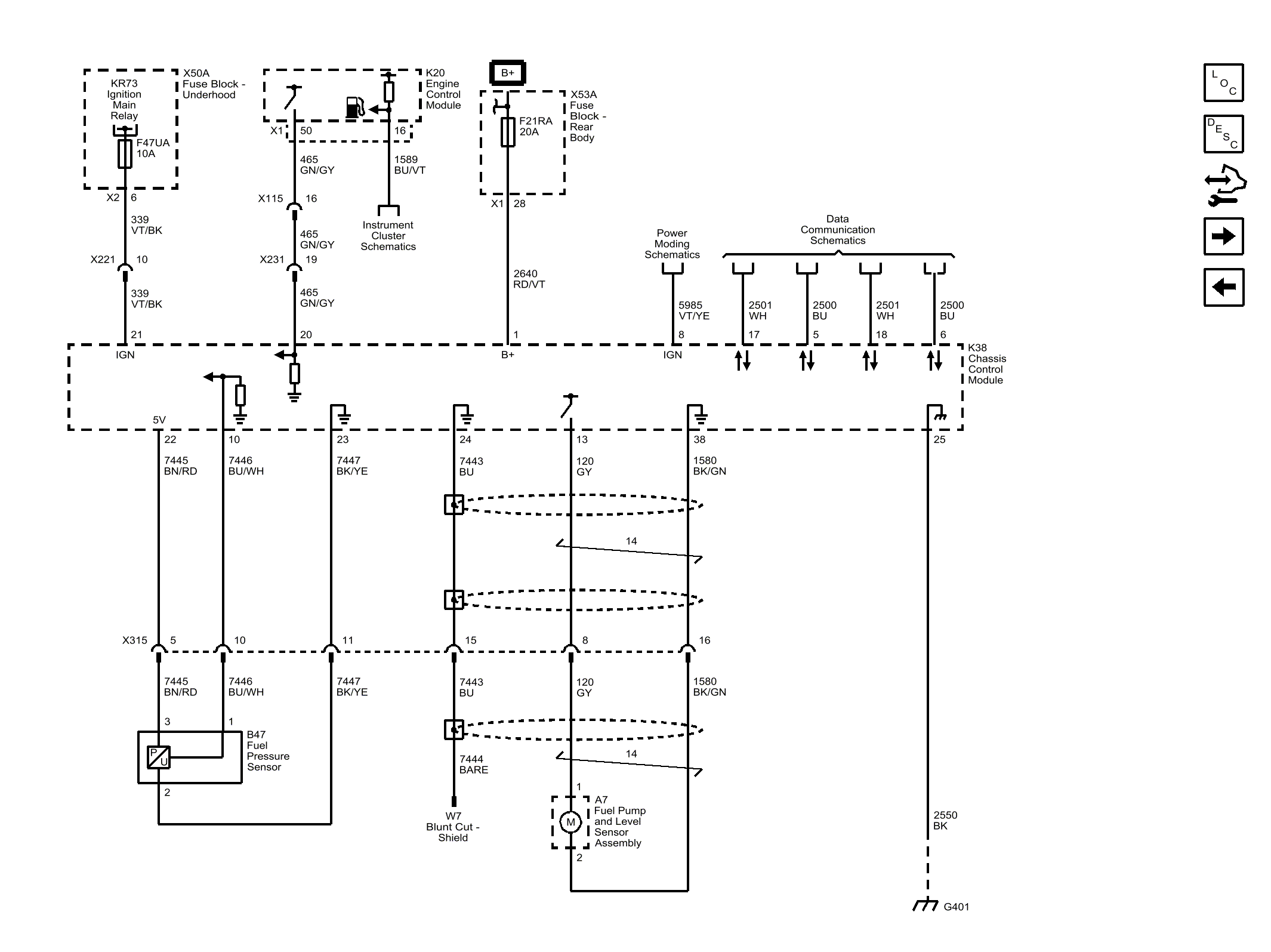

Fig 1: Fuel Controls - Fuel Pump Controls
Courtesy of GENERAL MOTORS COMPANY
