Controlled/Monitored Subsystem References

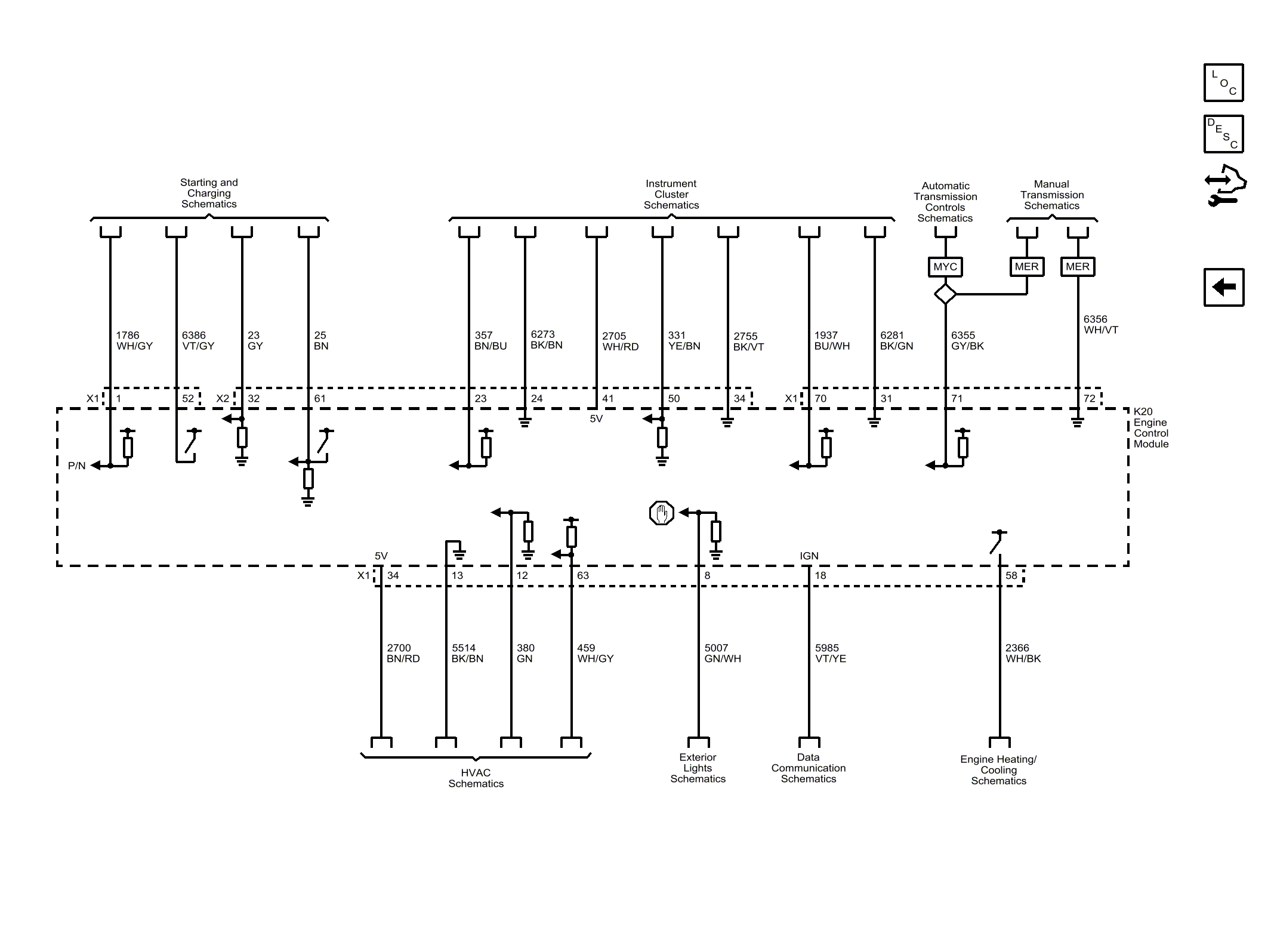

Fig 1: Controlled/Monitored Subsystem References
GM4534347Courtesy of GENERAL MOTORS COMPANY
