Front Seat Adjuster Actuator Replacement

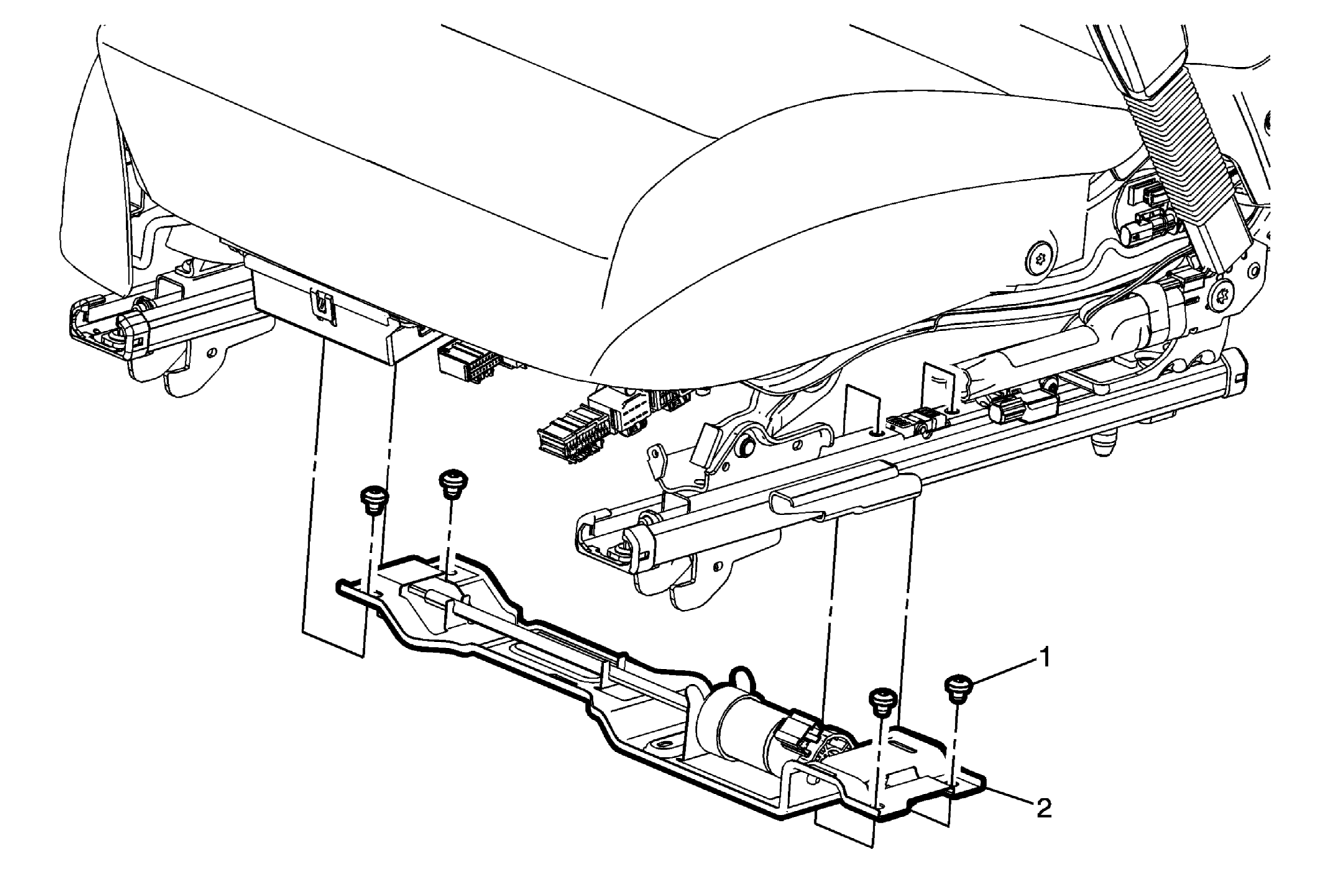

Fig 1: Front Seat Adjuster Actuator
GM3213686Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation
1 Front Seat Adjuster Actuator Fasteners (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Front Seat Adjuster Actuator

Procedure

  1. Disconnect the electric connector.
  2. Remove the seat adjuster motor shaft out of both seat frame side brackets.
  3. Remove the seat adjuster and mounting bracket by pulling downward from the cushion frame.
