Radio Front Side Door Speaker Replacement

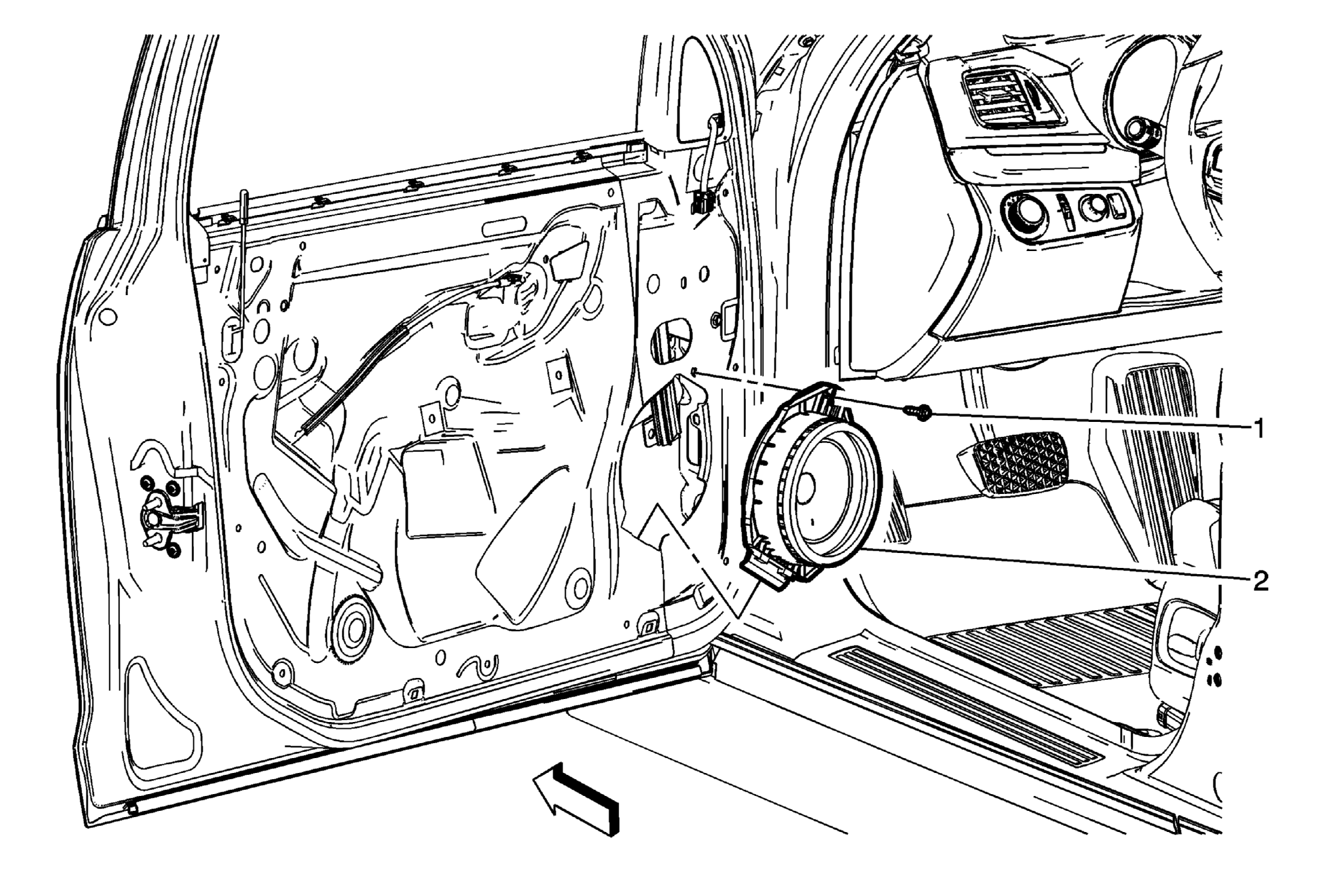

Fig 1: Radio Front Side Door Speaker
GM3596413Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement .
1 Radio Front Side Door Speaker Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Radio Front Side Door Speaker

Procedure

  1. Release the clip retaining the speaker to the door panel.
  2. Disconnect the electrical connector.
