Radio Antenna Amplifier Replacement

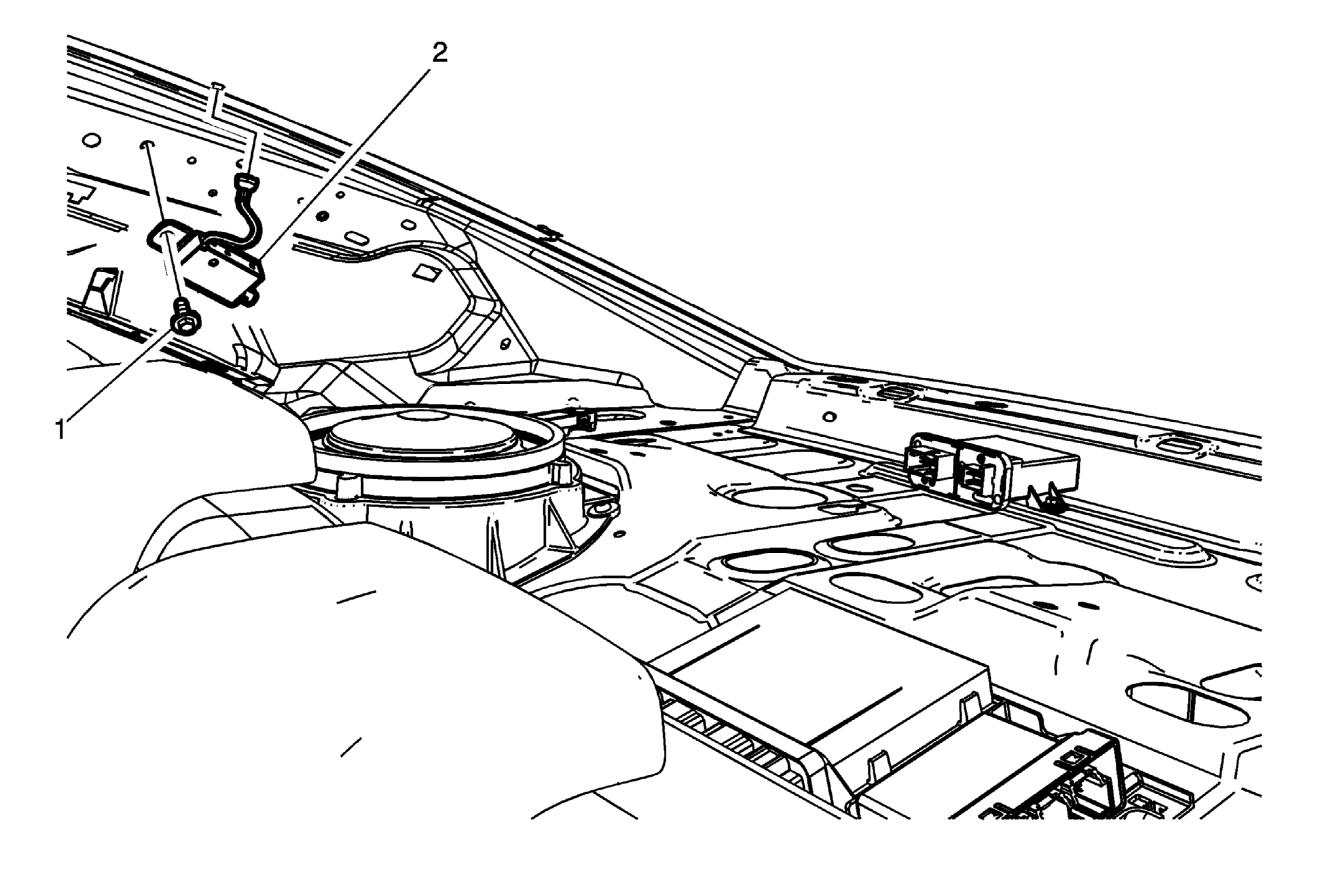

Fig 1: Radio Antenna Amplifier

GM3287597

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement .
Lower the rear of the headliner enough to gain access to the amplifier fastener. Refer to Headlining Trim Panel Replacement .

1

Radio Antenna Amplifier Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Radio Antenna Amplifier

Procedure

Disconnect the electrical connection.
Unsnap the wire from the glass.
