Engine Components - Left Front (LKN)

Engine Components - Left Front (LKN)

Items
1: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LFV)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LKN)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTG)
2: Q44 Engine Oil Pressure Control Solenoid Valve (LTG/LFV) Q44 Engine Oil Pressure Control Solenoid Valve (LTG/LFV)
3: T8A Ignition Coil 1 T8A Ignition Coil 1 (LFV)T8A Ignition Coil 1 (LKN)T8A Ignition Coil 1 (LTG)
4: T8B Ignition Coil 2 T8B Ignition Coil 2 (LFV)T8B Ignition Coil 2 (LKN)T8B Ignition Coil 2 (LTG)
5: T8C Ignition Coil 3 T8C Ignition Coil 3 (LFV)T8C Ignition Coil 3 (LKN)T8C Ignition Coil 3 (LTG)
6: T8D Ignition Coil 4 T8D Ignition Coil 4 (LFV)T8D Ignition Coil 4 (LKN)T8D Ignition Coil 4 (LTG)
7: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (LFV)B52A Heated Oxygen Sensor 1 (LKN)B52A Heated Oxygen Sensor 1 (LTG)
8: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust (LFV)B23E Camshaft Position Sensor - Exhaust (LKN/LTG)
9: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LFV)B34 Engine Coolant Temperature Sensor (LKN/LTG)
10: B130B Exhaust Gas Recirculation Temperature Sensor 2 (LKN) B130B Exhaust Gas Recirculation Temperature Sensor 2 (LKN)
11: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 (LFV)B52B Heated Oxygen Sensor 2 (LKN/LTG)
12: E41 Engine Coolant Thermostat Heater (LKN) E41 Engine Coolant Thermostat Heater (LKN)
13: B130A Exhaust Gas Recirculation Temperature Sensor 1 (LKN) B130A Exhaust Gas Recirculation Temperature Sensor 1 (LKN)

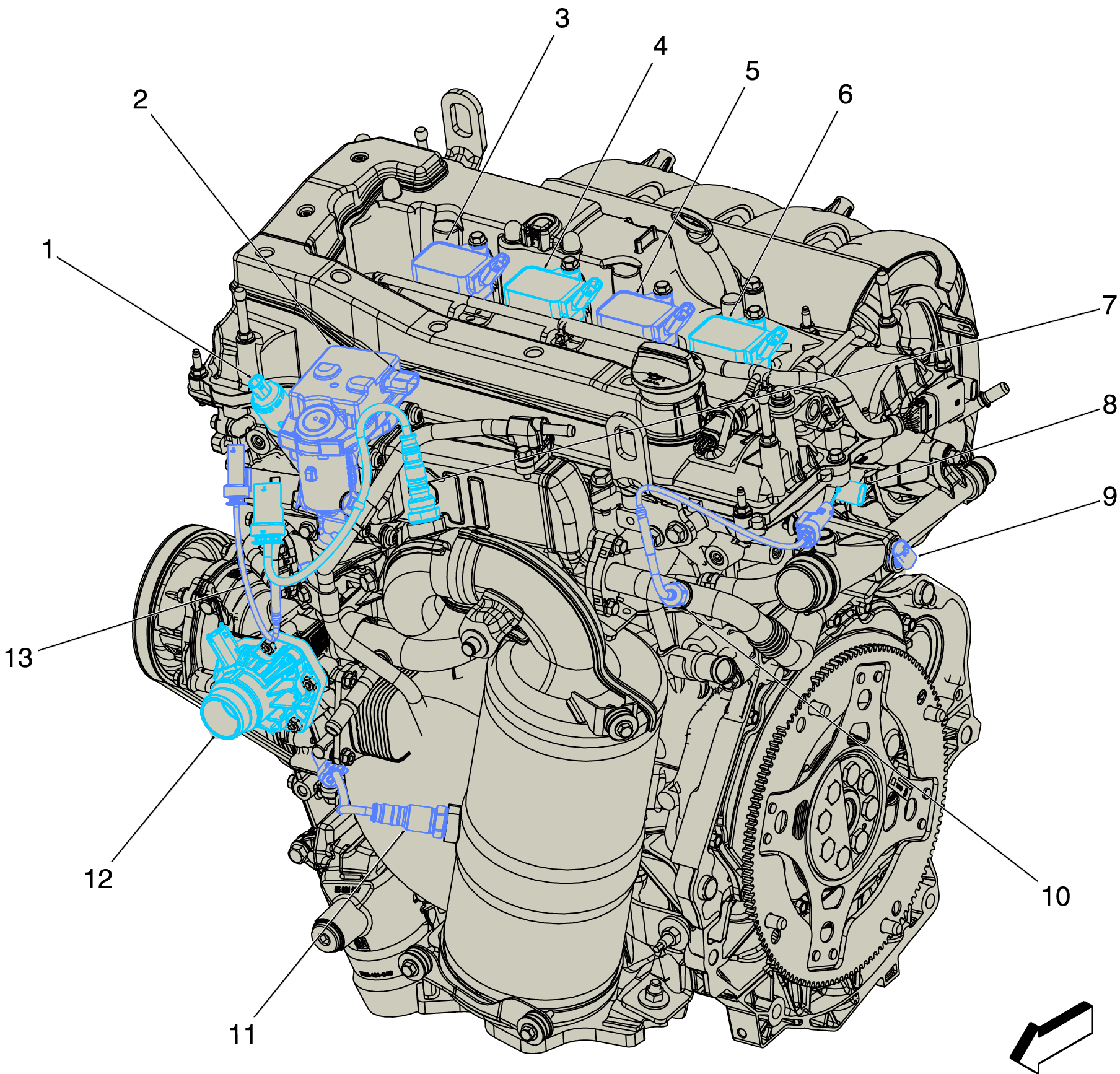

Fig 1: Engine Components - Left Front (LKN)
GM4228720Courtesy of GENERAL MOTORS COMPANY
