Fuel Tank Pressure Sensor Replacement

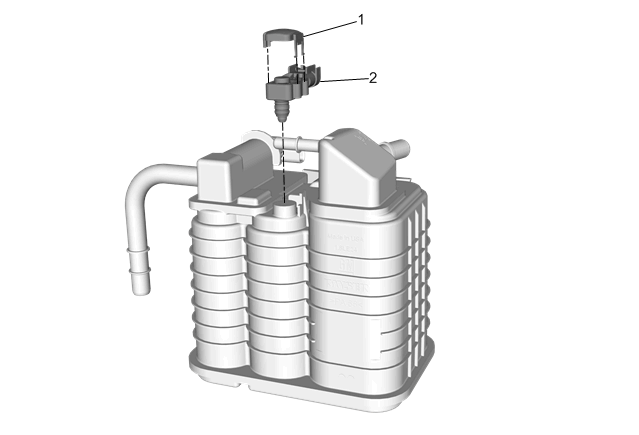

Fig 1: Fuel Tank Pressure Sensor
GM4224068Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Replacement
1 Fuel Tank Pressure Sensor Cover
Procedure
Release the retaining tabs.
2 Fuel Tank Pressure Sensor
Procedure
Disconnect the electrical connector.
