Engine Coolant Temperature Sensor Replacement - Water Outlet

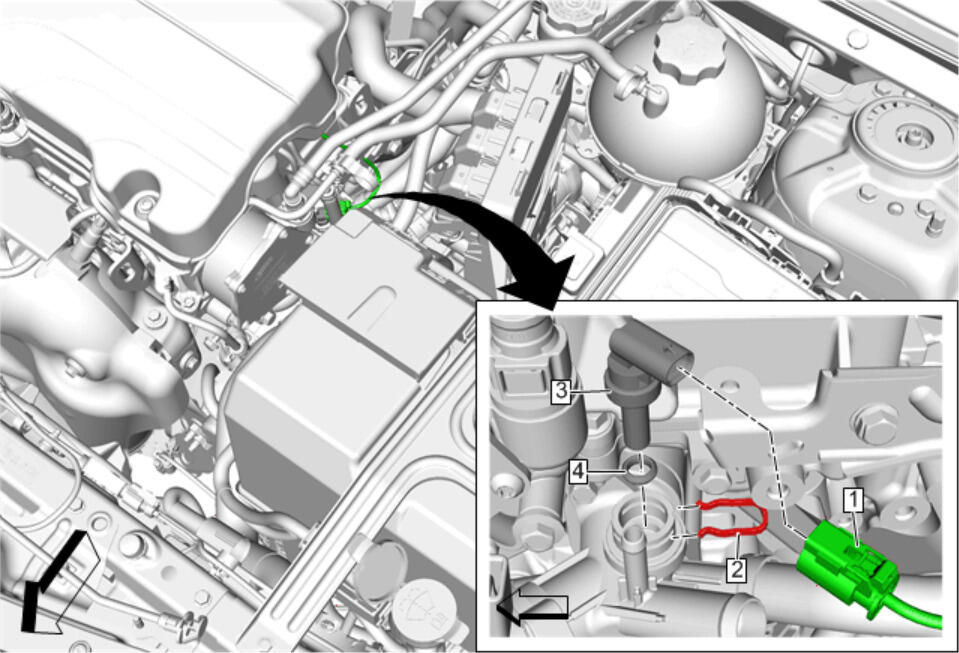

Fig 1: Engine Coolant Temperature Sensor - Water Outlet

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716) Charge Air Cooler Outlet Air Tube Replacement
1	Electrical Connector
2	Engine Coolant Temperature Sensor Clip
3	Engine Coolant Temperature Sensor
4	Engine Coolant Temperature Sensor Seal Procedure If reusing the engine coolant temperature sensor, replace the O-ring seal.
