Ignition Lock Key Transmitter Antenna Bracket Replacement

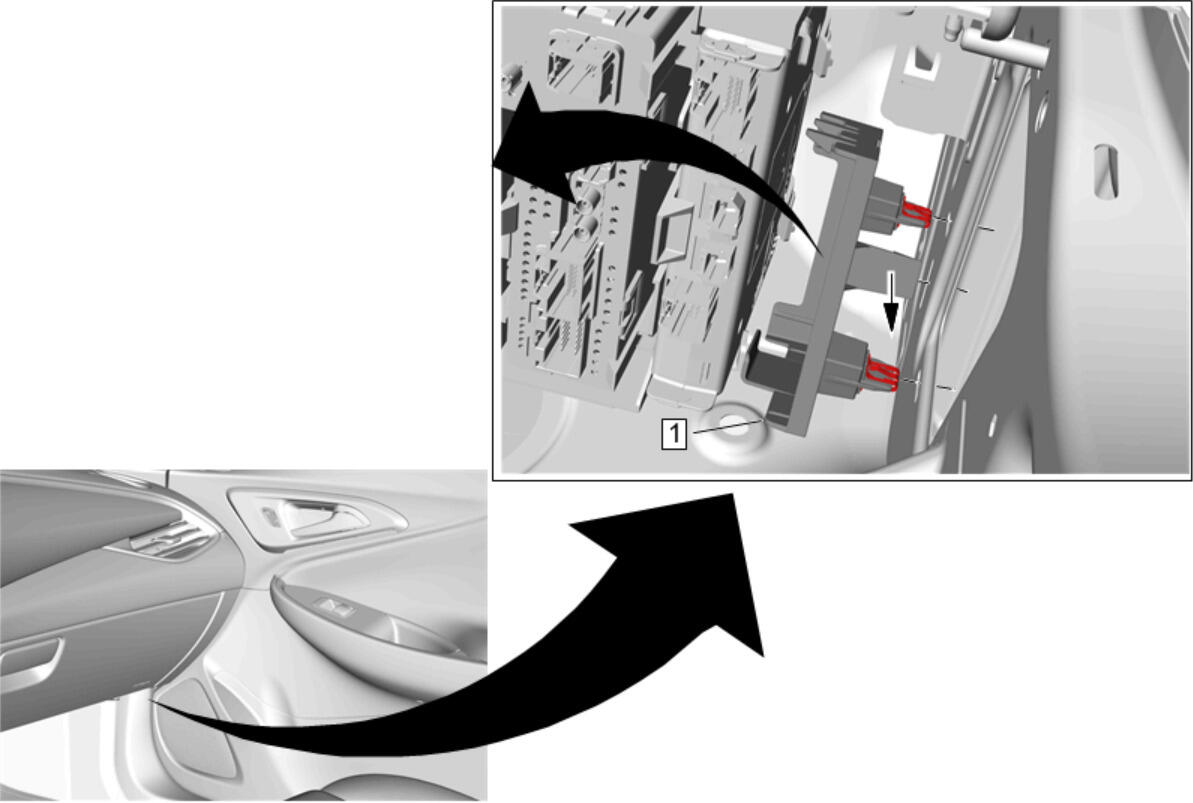

Fig 1: Ignition Lock Key Transmitter Antenna Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Keyless Entry Control Module Replacement
1	Ignition Lock Key Transmitter Antenna Bracket Procedure Release the retaining tabs.
