Installation Procedure

  1. Apply structural adhesive epoxy, (1) Lord Fusor™ 127EZ or equivalent, to fascia at mating surface according to manufacturer's directions.

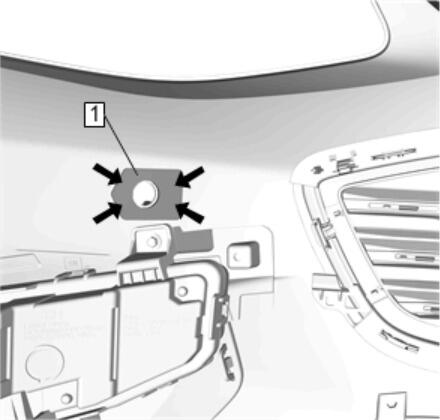

    Fig 1: Structural Adhesive Epoxy
    GM4325377Courtesy of GENERAL MOTORS COMPANY
  2. Using the alignment tabs/outline, install the sensor bracket (1) to the fascia.

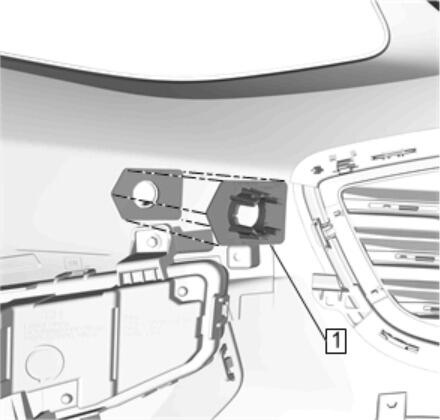

    Fig 2: Front Parking Assist Alarm Sensor Bracket
    GM4325375Courtesy of GENERAL MOTORS COMPANY
  3. Allow adhesive to cure according to manufacturer's directions.
  4. Install the sensor (1) to the sensor bracket.

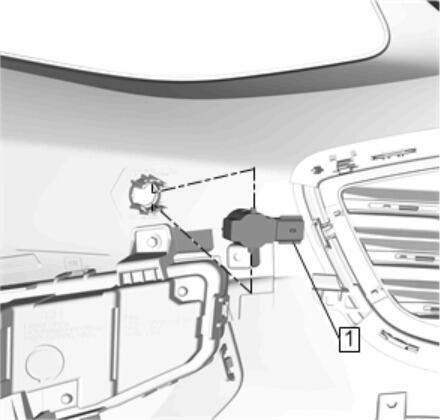

    Fig 3: Front Parking Assist Alarm Sensor
    GM4325372Courtesy of GENERAL MOTORS COMPANY
  5. Attach the wiring harness and connect the electrical connectors as necessary.
  6. Front Bumper Fascia - Install Front Bumper Fascia Replacement .
