Serial Data Gateway Module Replacement (With IO5, IO6)

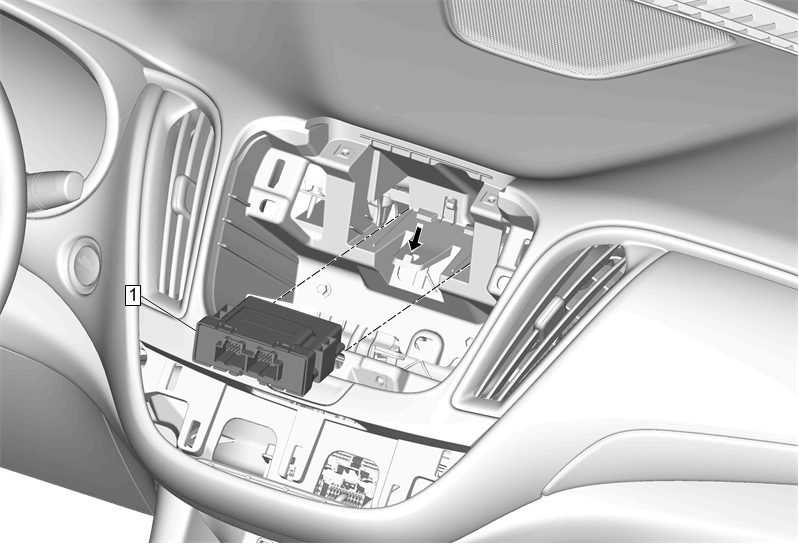

Fig 1: Serial Data Gateway Module (With IO5, IO6)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Radio Control Assembly Replacement
1	Serial Data Gateway Module Procedure Disconnect the electrical connectors. Release the retaining tab. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Radio Control Assembly Replacement

Serial Data Gateway Module

Procedure

Disconnect the electrical connectors.
Release the retaining tab.
Perform the necessary programming and setup procedure: Control Module References
