Installation Procedure

  1. Reposition the secondary air injection pipe to the vehicle.

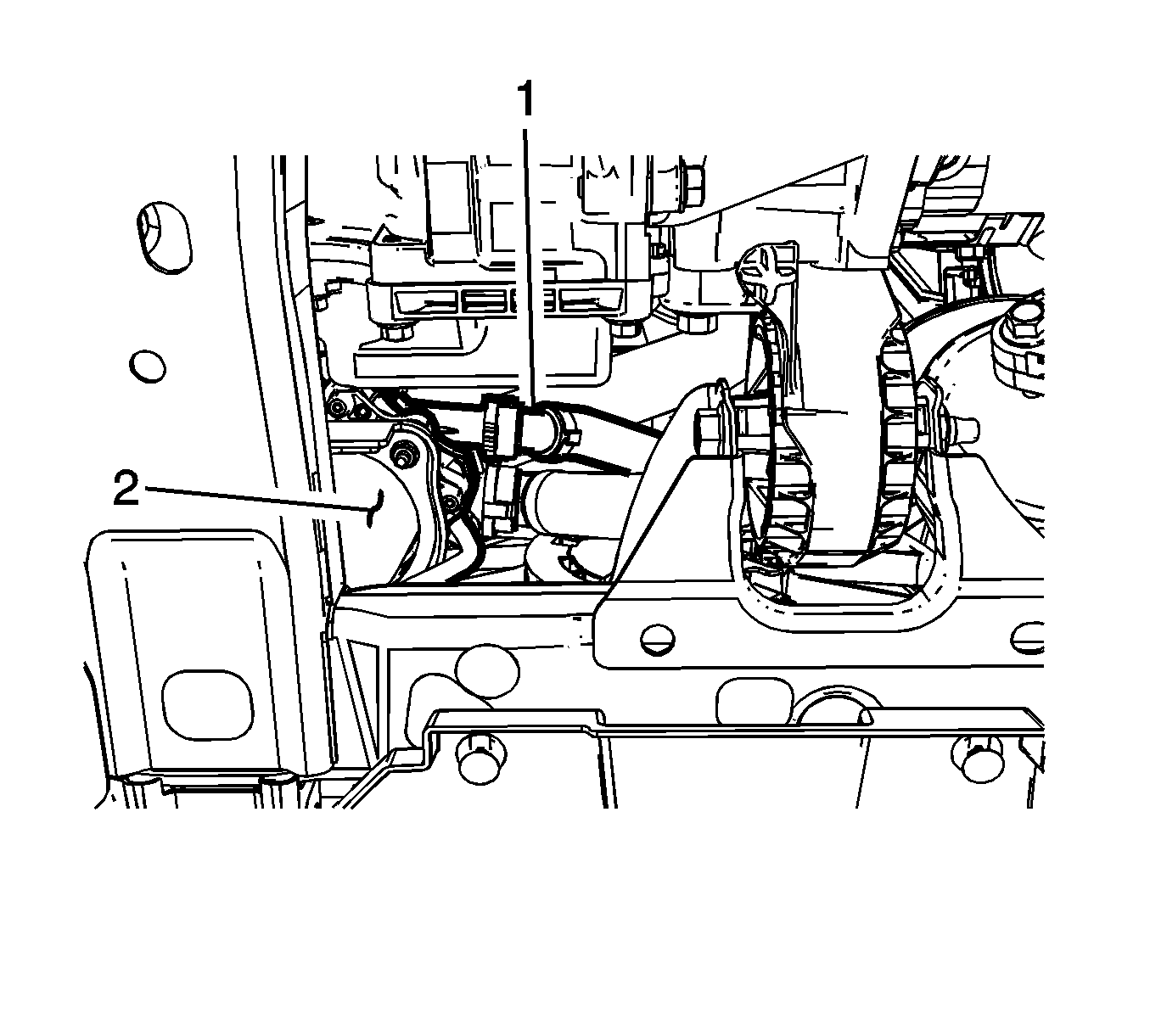

    2. Fig 1: Secondary Air Injection Pipe & Pump
    GM2899729Courtesy of GENERAL MOTORS COMPANY
  2. Connect the secondary air injection pipe (1) to the secondary air injection pump (2). Refer to Plastic Collar Quick Connect Fitting Service .

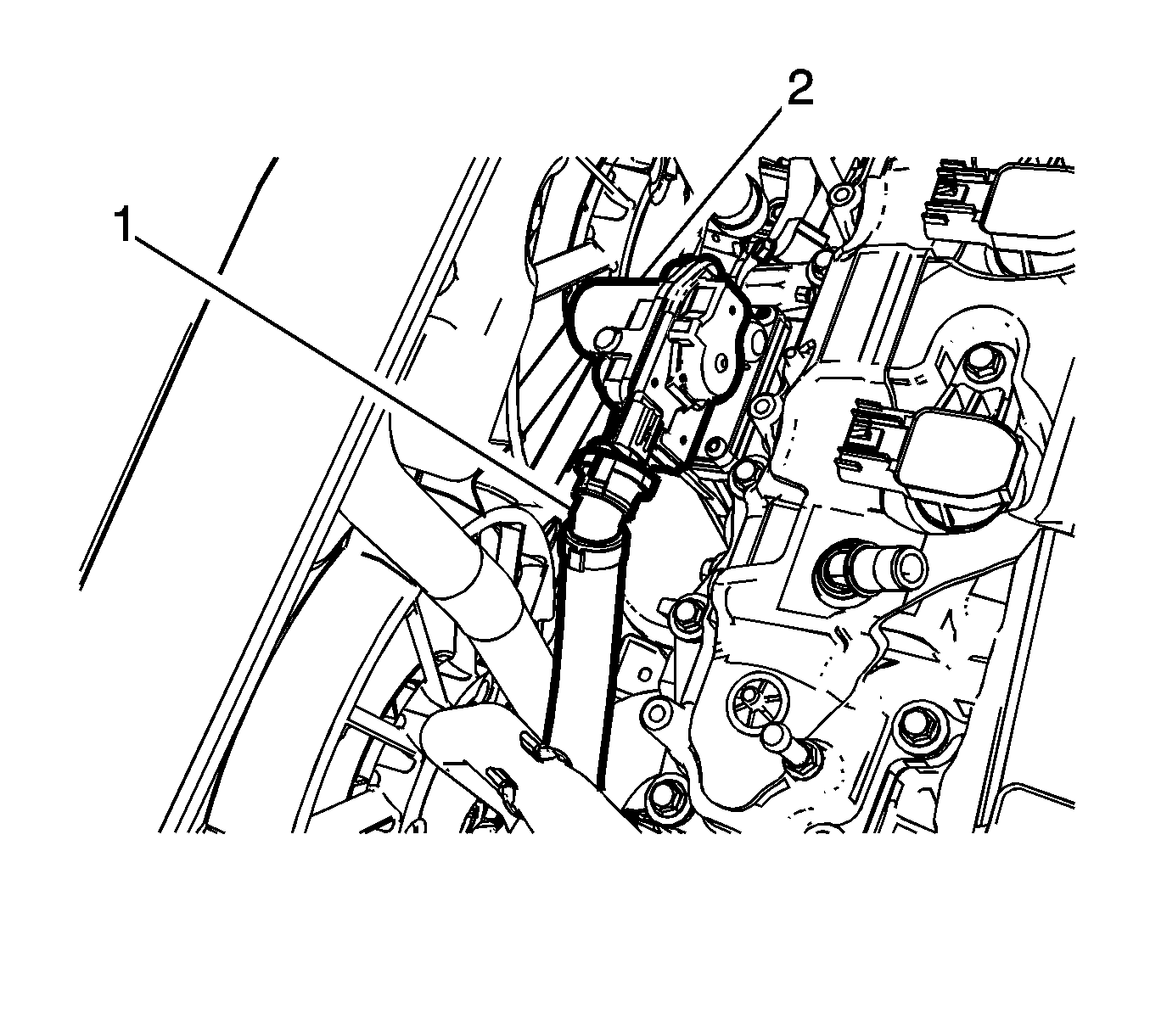

    3. Fig 2: Secondary Air Injection Pipe & Left Side Bypass Valve
    GM2899725Courtesy of GENERAL MOTORS COMPANY
  3. Connect the secondary air injection pipe (1) to the left side secondary air injection bypass valve (2). Refer to Plastic Collar Quick Connect Fitting Service .

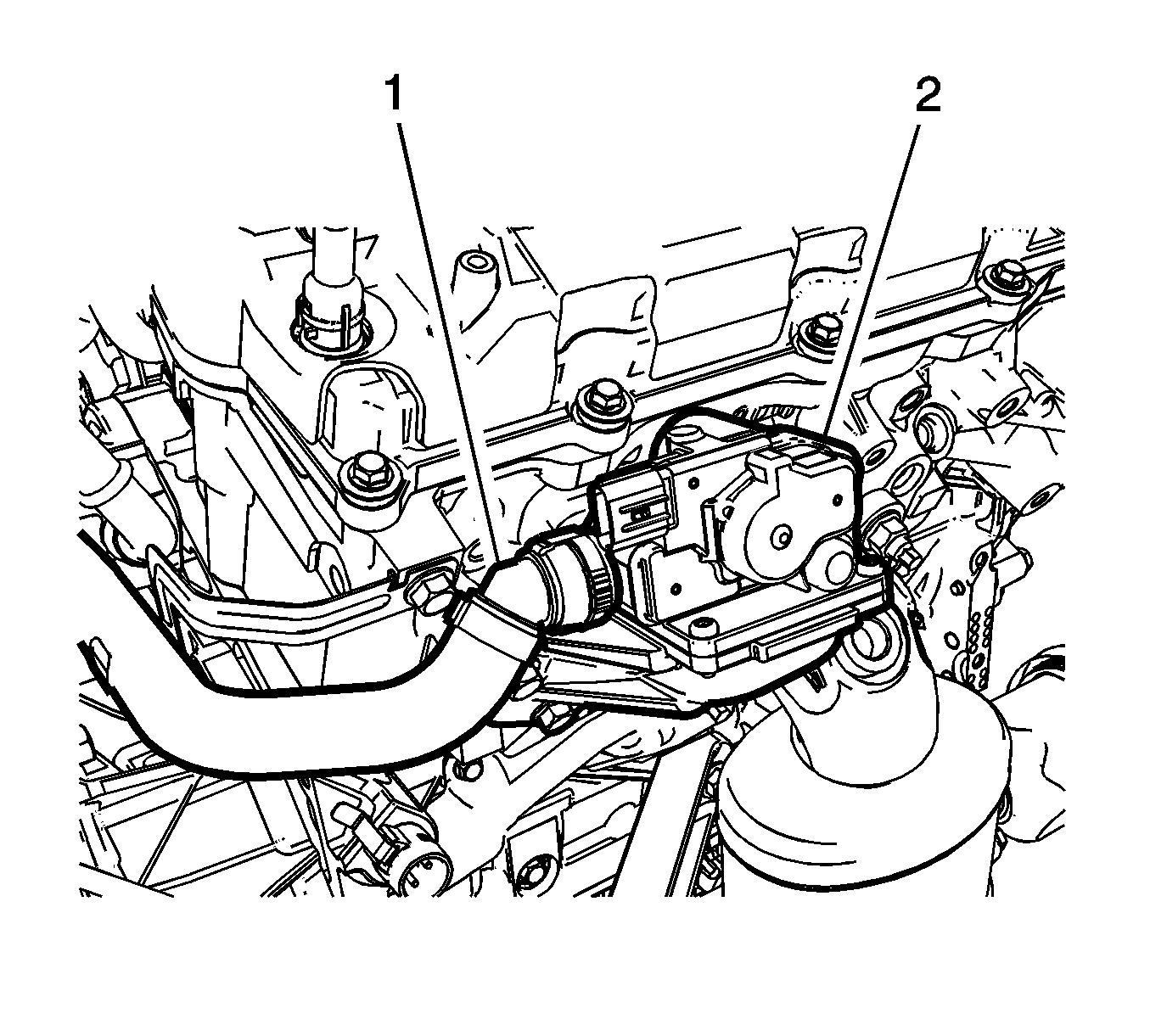

    4. Fig 3: Secondary Air Injection Pipe & Right Side Bypass Valve
    GM2899728Courtesy of GENERAL MOTORS COMPANY
  4. Connect the secondary air injection pipe (1) to the right side secondary air injection bypass valve (2). Refer to Plastic Collar Quick Connect Fitting Service .
  5. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX) .
