Chevrolet
>>
2017
>>
Express 2500 LS, 2.8L Eng VIN 1
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Body Control System Wiring Schematics
>>
BCM Inputs and Outputs (3 of 3)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
BCM Inputs and Outputs (3 of 3)

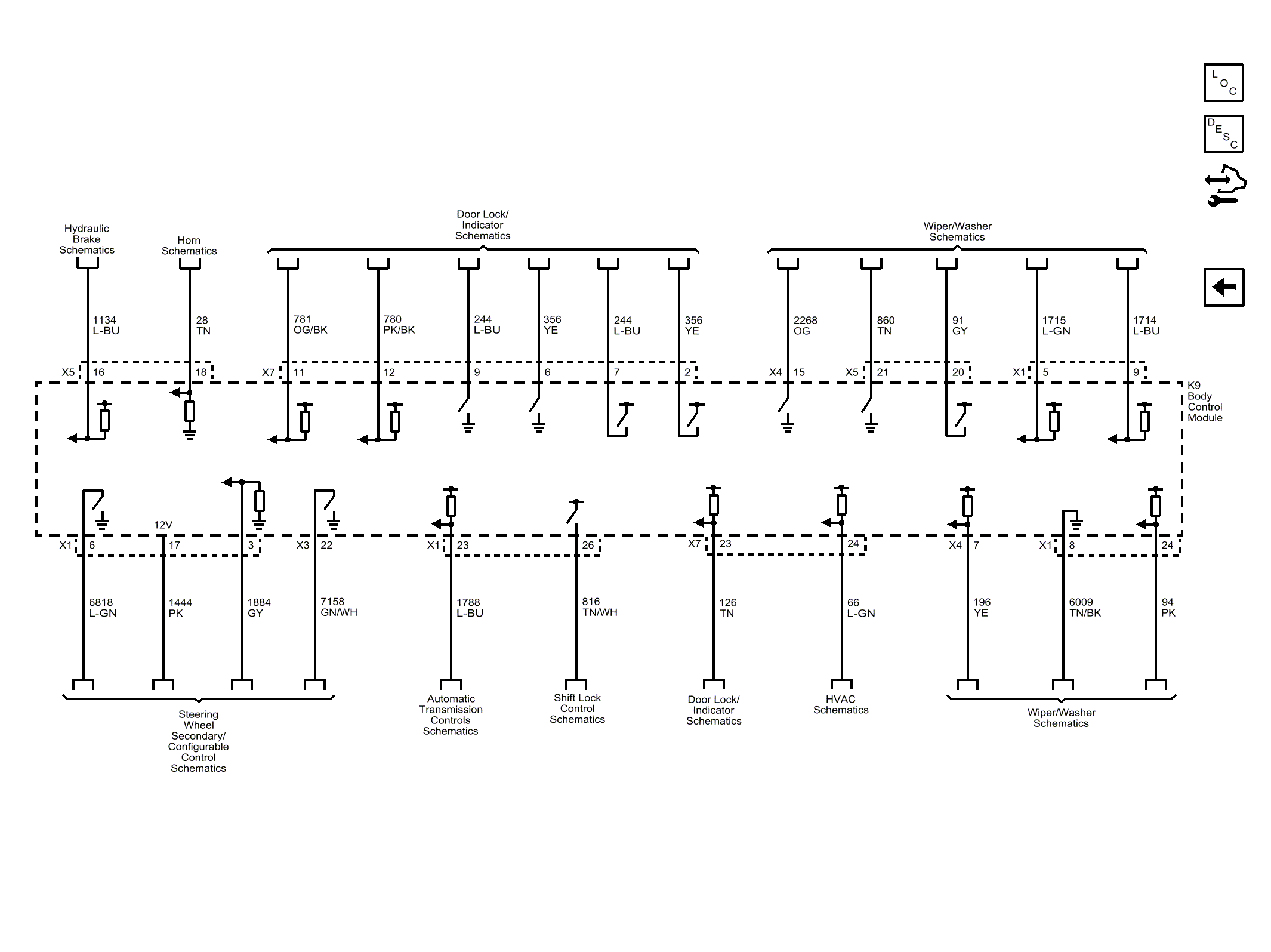

Fig 1: BCM Inputs and Outputs (3 of 3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
