Fuel Tank Shield Replacement

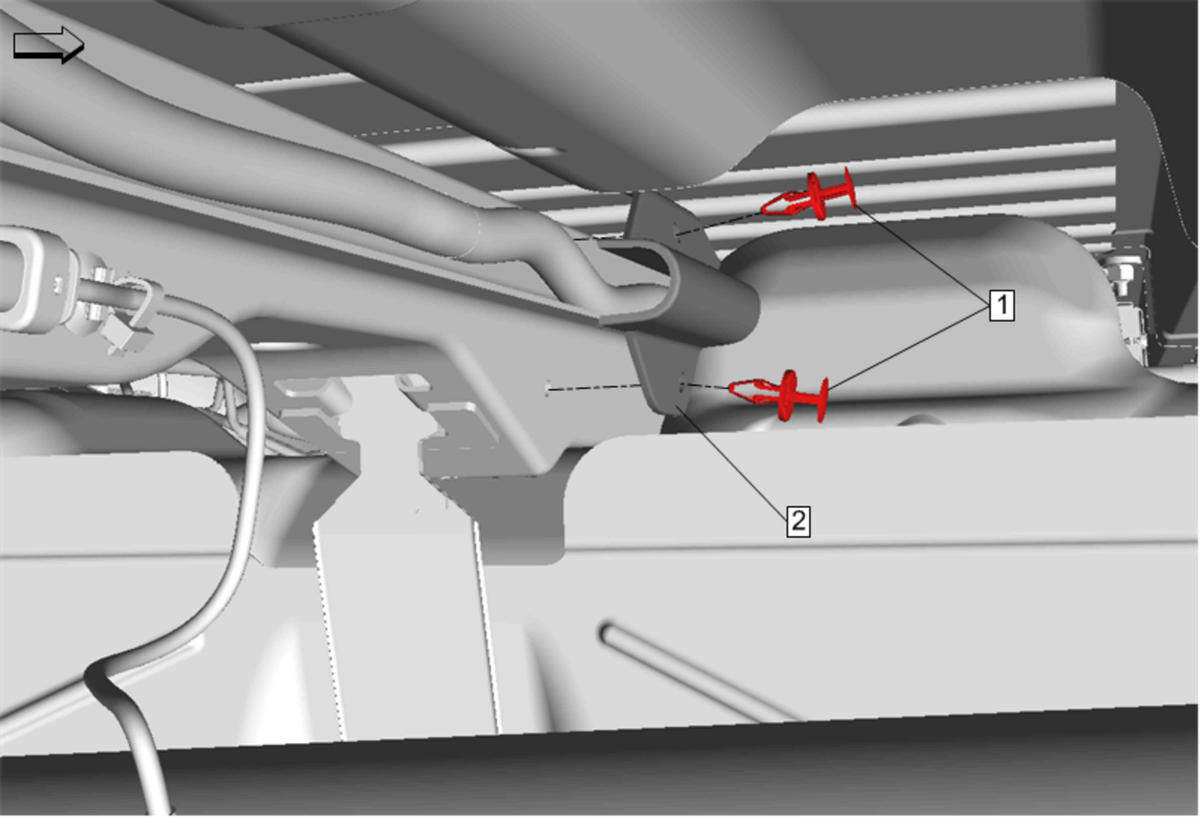

GM4604834Courtesy of
Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Reposition wiring harness to access retainers and remove shield.
1 Fuel Tank Shield Retainer [2x]
CAUTION:

Refer to Fastener Caution .
2 Fuel Tank Shield
