Removal Procedure

  1. Remove the front tire and wheel assemblies. Tire and Wheel Removal and Installation
  2. If equipped with the front leveling position sensor, disconnect the electrical connector.
    3. Fig 1: Nut
    GM3665593Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Support the lower control arm ball joint with a hydraulic jack.

  3. Loosen Nut (1)

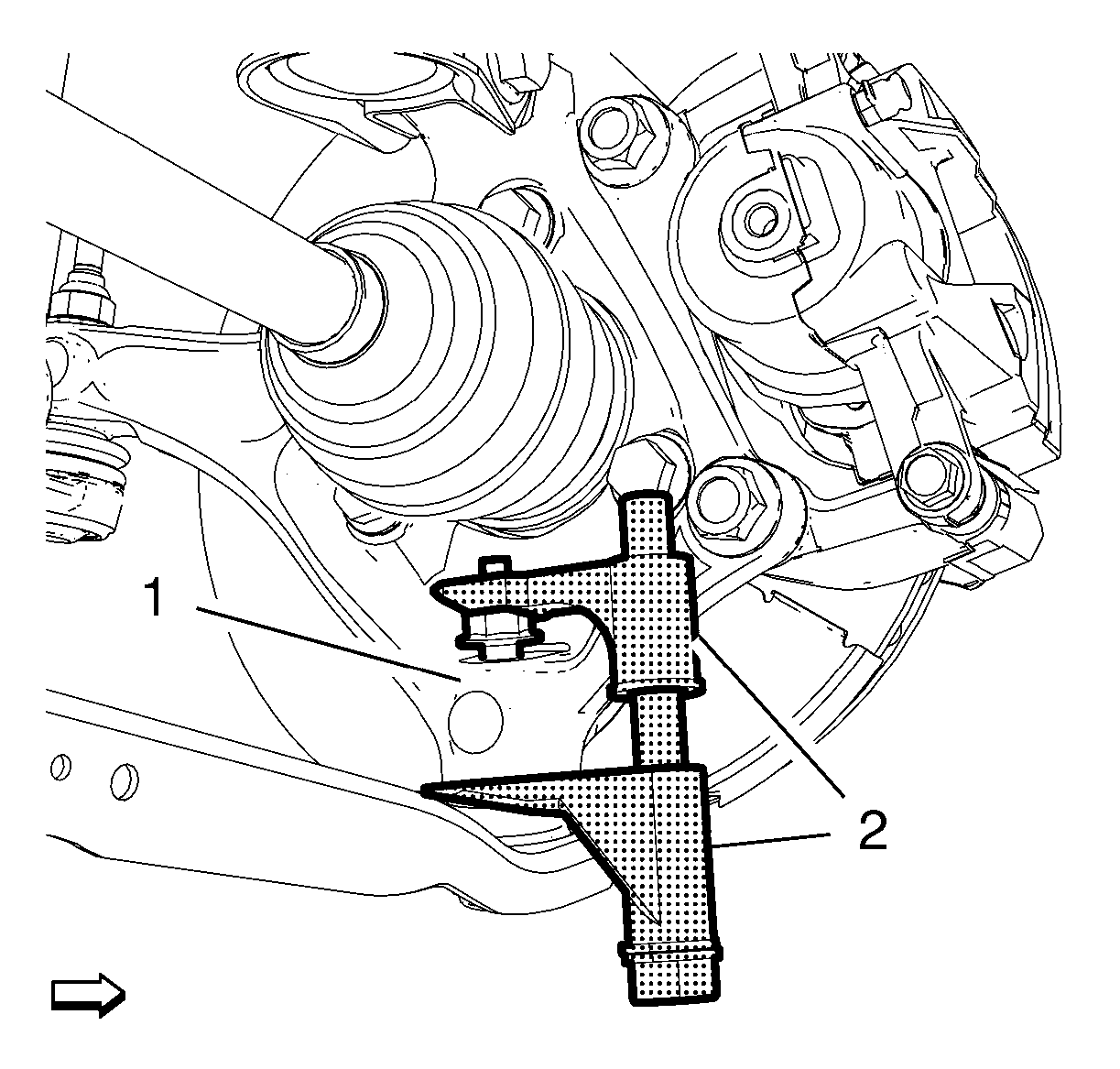

    4. Fig 2: Separator And Steering Knuckle
    GM3665597Courtesy of GENERAL MOTORS COMPANY
  4. Install CH-42188-B  separator (2) @Steering Knuckle (1)
  5. Separate the steering knuckle from the lower ball joint.
    6. Fig 3: Front Lower Control Arm Bushing And Bolt
    GM3665592Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If necessary turn the steering knuckle in position.

  6. Remove Bolt (1) @Front Lower Control Arm Bushing (2) - and DISCARD
    7. Fig 4: Nuts And Bolts
    GM3665594Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Hold against the nuts (1) to release the bolts (2). Use a suitable tool.

  7. Remove Bolt (2) and DISCARD
  8. Remove Nut (1) and DISCARD
