Engine Coolant Temperature Sensor Replacement - Water Outlet

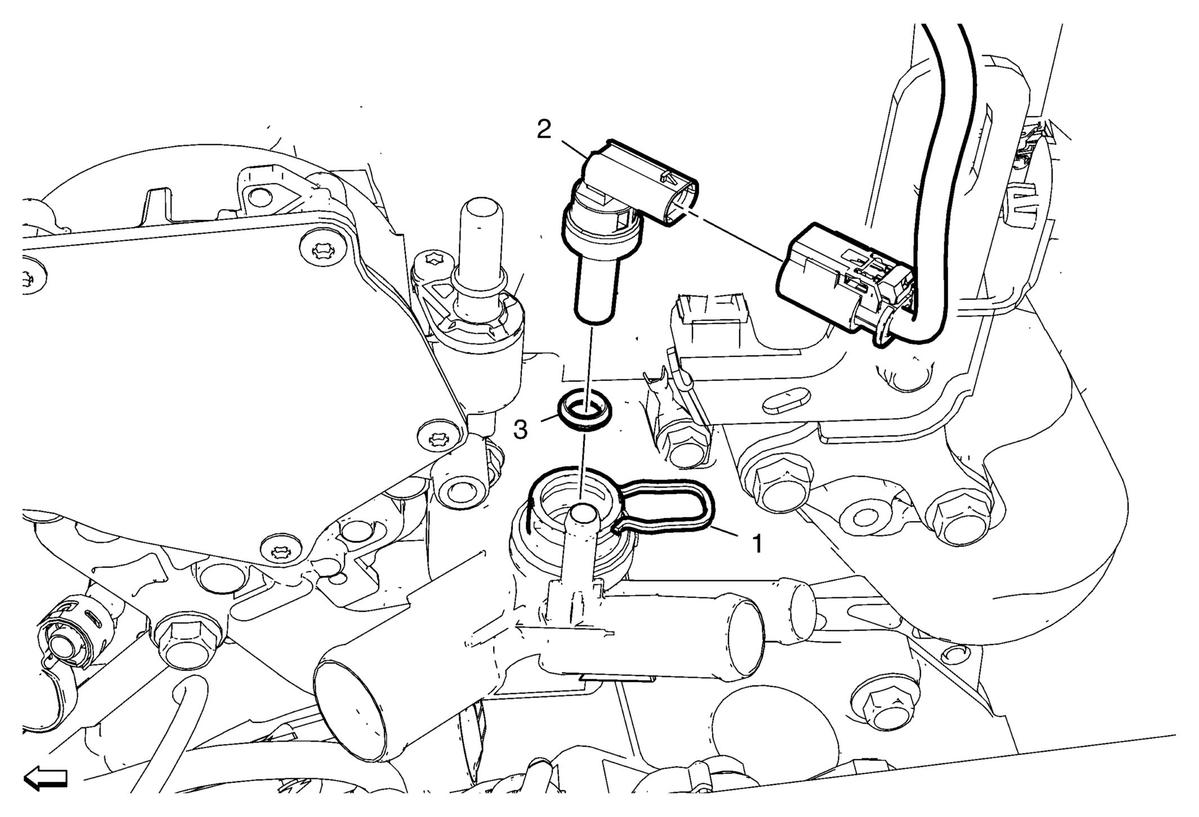

Fig 1: Engine Coolant Temperature Sensor - Water Outlet
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Cooling System Draining and Filling
Charge Air Cooler Outlet Air Hose Replacement
1
Retaining Clamp
2
Engine Coolant Temperature Sensor
Procedure
Disconnect the electrical connector.
3
Engine Coolant Temperature Sensor Seal
Procedure
Remove and DISCARD the O-ring seal.
